Written By: Don Dodi
Fact Checked By: Kristen Brown
Reviewed By: Diego Rosenberg
Basically, if you are driving with a faulty ABS sensor then it can increase your stopping distance and reduce the traction as well, which is really dangerous for your safety purpose.
Now-a-days, modern vehicles actually uses Anti-Lock Braking System to prevent the wheels from locking during the sudden stops, so the ABS sensor is just the small but it is really essential part that consistently measures wheel speed and literally sends that information to the car’s computer.
So, if this sensor stops working properly, then simply system cannot control wheel slip, which basically increases stopping distance by several feet: and on the wet or slippery roads it becomes really dangerous thing to neglect.
As well as, research also shows that the ABS systems actually reduces the risk of skidding-related accidents as it improves steering control during emergency braking, which literally makes a working sensor critical for both safety and stability as well.
The reason can be anything like: become dirty, damaged or electrically weak, so whenever you see the ABS warning light is on, then it basically signals the driver that the system needs your attention for proper work.

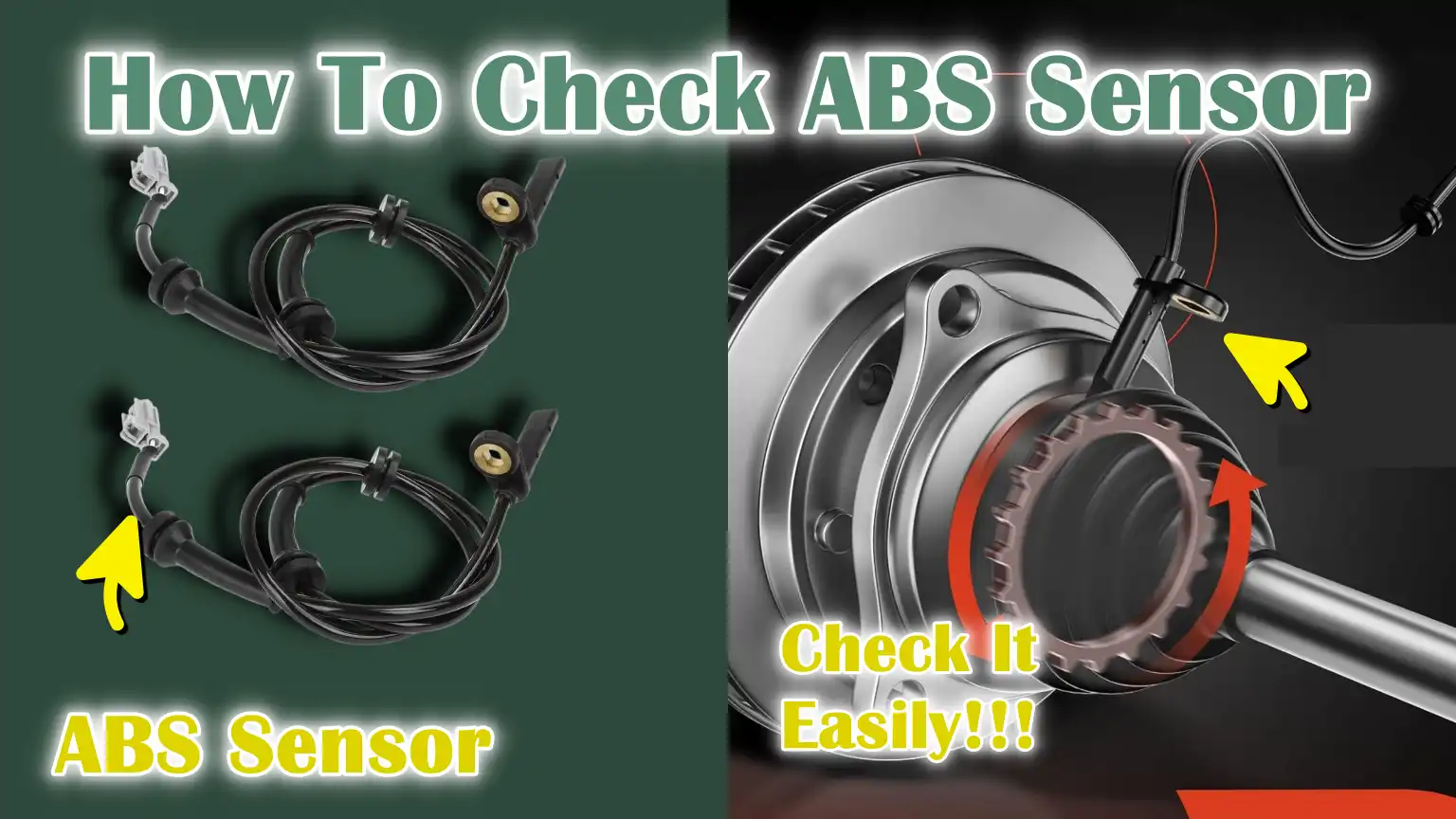

Now, this is the guide about How To Check ABS Sensor so that you can check this sensor and avoid costly repairs as well by ensuring the perfect working of braking system.
Common Symptoms of a Bad ABS Sensor
1. ABS Warning Light on the Dashboard
The most obvious sign of a bad ABS sensor is an ABS warning light on the dashboard.
This occurs when the car’s computer detects that one of the wheel-speed sensors is not sending accurate or complete information.
Because the ABS system relies on accurate wheel-speed readings to function safely, even a small error in the sensor’s signal can cause the system to shut down and alert the driver with a warning light.
This warning is important because when the light comes on, the ABS system becomes inactive, which can increase stopping distances during emergency braking.
2. Traction Control or Stability Control Light On
In many modern vehicles, the ABS sensor also helps systems like traction control and stability control function properly.
These systems use wheel-speed information to reduce wheel slip and keep the car stable on slippery ground or during sharp turns.
If the ABS sensor malfunctions, these safety systems may also malfunction, causing the traction control or stability control warning lights to illuminate.
When this happens, essential vehicle features that help prevent skidding and sliding, specially on wet or rough roads, may stop working.
3. Anti-Lock Braking May Not Work During Hard Stops
A faulty ABS sensor can significantly impair anti-lock braking, specially during sudden or hard braking.
Without accurate wheel-speed data, the ABS system cannot consistently release and apply brake pressure, which is its primary function: preventing wheel locking.
This means that the wheels may lock and slide during sharp stops, making the vehicle difficult to control.
Drivers may feel the car pulling or sliding more than usual and the steering may become less responsive during emergency braking.
4. Pulsating or Inconsistent Braking Feel
Another common symptom is a pulsating, uneven, or inconsistent feel when braking.
ABS sensors constantly monitor the speed of each wheel and when they fail, the system can receive incorrect information, causing the brakes to operate unpredictably.
Drivers may feel vibrations or pulses in the brake pedal even when ABS shouldn’t activate.
This occurs because the system becomes confused by irregular wheel-speed readings and may try to activate ABS even when the wheel isn’t locked.
5. Irregular Wheel-Speed Readings
Faulty ABS sensors often result in irregular or inaccurate wheel-speed readings, which can usually be confirmed with an OBD-II scanner or live data tool.
When one wheel shows a very different speed than the others, or when the reading drops to zero while the vehicle is moving, this is a clear sign of a sensor problem.
These inaccurate readings can confuse the car’s braking and traction systems, leading to unsafe braking behavior.
Identifying this problem early helps prevent further damage to the ABS system and ensure safe driving.
Tools
| Tool Name | What It Does | Why It Is Important |
|---|---|---|
| OBD-II Scanner | Reads trouble codes, including ABS codes, from the car’s computer. | It helps you find out which wheel sensor is faulty and shows wheel-speed data in real time. |
| Digital Multimeter | Measures voltage, resistance and electrical signals in the sensor. | This allows you to check if the ABS sensor is sending the correct electrical output. |
| Jack and Jack Stands | Lifts and holds the car safely off the ground. | Allows you to access the wheel hub, wiring and ABS sensor for inspection and testing. |
| Safety Gloves and Wheel Chocks | Protect your hands and prevent the car from rolling away while you lift it. | Safety during inspection is increased and accidental movement can be prevented. |
| Basic Socket Set or Screwdriver Set | Helps remove the wheel, bolts and ABS sensor. | Provides you with the tools you need to safely remove and reinstall the sensor. |
How to Ensure Safety By Preparation Before You Begin
1. Park on a Flat and Stable Surface
Before beginning any work on the ABS sensor, it’s essential to park the vehicle on a flat and stable surface.
Level ground ensures that the car remains stable and doesn’t rock or roll while you’re inspecting the wheels or working underneath.
Uneven surfaces can create dangerous angles and increase the risk of the vehicle slipping off the jack stands.
This simple step reduces the chance of accidents and provides a safe working area for inspecting ABS parts.
2. Engage the Parking Brake and Install Wheel Chocks
Engage the parking brake and place wheel chocks behind the wheels to provide another layer of stability.
The parking brake holds the rear wheels in place, while the wheel chocks prevent any forward or backward movement.
This is specially important when lifting the front of the car, as even the slightest movement can be dangerous.
Using both together provides greater protection against accidental rolling and creates a safer setup for working around the wheel hub where the ABS sensors are located.
3. Stop the Engine and Remove the Key
The engine should always be turned off before beginning an inspection to avoid moving parts, electrical hazards and unexpected system activations.
Removing the key ensures that the ignition isn’t accidentally turned on while working.
This prevents the ABS pump or other electronic systems from activating, which could cause injury or interrupt your inspection.
It also stabilizes the electrical circuits so you can safely handle wiring and connectors.
4. Use Jack Stands to Safely Lift the Vehicle
When lifting a car, it’s important to use the correct jack to lift it and jack stands to securely hold it in place.
Jack stands are designed to safely support the vehicle’s weight for extended periods, unlike hydraulic jacks that can lose pressure over time.
Placing the stand below the recommended lifting point prevents damage to the frame or suspension and provides firm support for the car.
This stable support gives you safe access to the wheel area, allowing you to check the ABS sensor, wiring and tone ring without the risk of the vehicle falling over.
5. Disconnect the battery only when necessary
For most ABS sensor checks, disconnecting the battery isn’t always necessary, but it can be helpful if you’re working with exposed wiring or want to avoid accidentally shorting the battery.
Turning off the power eliminates the risk of electric shock and prevents signals from reaching the ABS control module while checking sensors or connectors.
However, this should only be done if recommended in the vehicle’s service manual or if you’re working directly with wiring components.
Disconnecting the battery ensures overall electrical safety and reduces the risk of triggering unwanted system alerts.
How to Locate ABS Sensor
1. Wheel Hub or Knuckle Location on Each Wheel
The ABS sensor is typically mounted near the wheel hub or steering knuckle on each wheel, as this is where it can accurately read wheel speed.
The sensor’s tone ring or reluctor is located very close to the wheel, rotating with the wheel or axle.
By positioning it in this location, the sensor can quickly detect changes in wheel speed and send information to the ABS control module.
When inspecting the location, you’ll often find that the sensor is secured with a small bolt and housed in a protective housing to protect it from dirt, water and debris.
This location gives the sensor a clear view of the moving parts it needs to monitor and keeps it stable during braking.
2. Differences in Front and Rear Sensor Design
Front and rear ABS sensors often look similar, but their mounting location and design can vary depending on the vehicle.
In many front-wheel-drive cars, the front sensors are mounted on the steering knuckle, allowing them to rotate and pivot with the wheels.
Because the front wheels move more during steering, the sensor wiring is typically longer and more flexible.
Rear sensors, on the other hand, can be mounted either on the wheel hub or on the rear axle, depending on whether the car uses independent suspension or a solid axle design.
Some rear sensors also come integrated with the wheel bearing assembly, meaning that if a sensor fails, the entire hub may need to be replaced.
Understanding these differences helps you find the correct sensor quickly and avoid confusion during testing.
3. Follow the sensor wiring harness to find the connectors
The easiest way to locate the ABS sensor is to follow the wiring harness that runs along the suspension components.
The wire typically starts near the wheel hub and goes to a connector located on the chassis or inner fender area.
These connectors are designed to be easily accessible for diagnostics and repair.
The wiring can be protected with plastic clips or rubber coverings to prevent damage from road debris, water, or suspension movement.
By following the wiring path, you can confirm the correct location of the sensor and also check for any damage or loose connections that could cause the sensor to malfunction.
This method is specially helpful in vehicles where the sensor is hidden or not immediately visible.
4. Understanding the Location of the Tone Ring or Reluctor Wheel
To fully locate and test the ABS sensor, it is important to understand the location of the tone ring or reluctor wheel, as the sensor always points directly at this part.
The tone ring is a round metal ring with evenly spaced teeth or slots that rotate with the wheel or axle.
As the ring rotates, the sensor reads speed by detecting changes in the magnetic or electrical field created by these teeth.
The tone ring may be built into the CV joint, attached to the brake rotor, mounted on the wheel hub, or placed on the axle shaft, depending on the vehicle’s design.
Knowing where the tone ring is located helps you ensure the sensor is where it should be and allows you to check both parts together for dirt, damage, or misalignment.
This understanding greatly improves the accuracy of detecting ABS sensor problems.
How to Perform a Visual Inspection
1. Look for dirt, rust, debris, or brake dust buildup
During a visual inspection, first look for any dirt, rust, debris, or brake dust buildup around the ABS sensor area.
The sensor reads wheel speed by detecting signals from the tone ring and even a small layer of dirt or rust can prevent a clear reading.
Brake dust is particularly common because it accumulates around the wheel hub every time the brakes are applied.
Over time, this buildup can create a blockage between the sensor and the tone ring, causing the sensor to perceive the wheel as moving slower than it actually is.
Cleaning this area can help restore accurate readings and prevent false ABS warnings caused by dirt rather than a true mechanical problem.
2. Check for Cracks or Physical Damage to the Sensor
The ABS sensor should also be carefully examined for any cracks, broken plastic, or signs of physical damage.
The sensor is often exposed to road conditions such as small stones, water and heat from the brakes, so damage can occur without the driver’s knowledge.
A broken housing can allow moisture to enter the sensor, disrupting the electrical signals needed to accurately read wheel speed.
Even a minor collision can damage the sensor enough to produce inaccurate readings.
Early detection of damage can prevent sensor failure and ensure the ABS system continues to function properly even during sudden or hard braking.
3. Check for wear and tear in the wiring insulation
The wiring connecting the ABS sensor to the car’s control module plays a vital role in transmitting electrical signals.
Over time, this wiring can rub against suspension parts, become compressed by wheel movement, or deteriorate from exposure to heat and moisture.
When inspecting, look for worn insulation, exposed wires, or worn parts along the wiring harness.
Any break in the insulation can cause a short circuit, a weak signal, or a complete loss of signal.
This type of wiring damage is one of the most common causes of ABS sensor failure and repairing or replacing the faulty wiring can often resolve the ABS problem without requiring a new sensor.
4. Ensure the sensor is properly installed and aligned
For accurate readings, the ABS sensor must be properly seated in its mounting hole and aligned with the tone ring.
During inspection, check for loose, bent, or misplaced sensors.
A loose sensor can vibrate during movement, disrupting the signal sent to the ABS system.
Misalignment can also cause the sensor to misread wheel speeds because the distance between the sensor and the tone ring is not consistent.
Ensuring the sensor is properly installed helps maintain consistent and reliable readings, which are essential for the ABS system to activate at the right time during braking.
5. Check for corrosion on connectors or pins
The electrical connectors between the ABS sensor and the vehicle’s wiring harness should be checked for corrosion, moisture, or damaged pins.
Corrosion often appears as green or white marks on the metal pins and can obstruct the flow of electricity from the sensor.
Moisture entering the connector, specially in rainy or humid weather, can temporarily or permanently block the signal.
Corroded pins can weaken the contacts, causing incomplete or intermittent signals to the ABS control module.
Cleaning or repairing damaged connectors will immediately restore proper functioning and prevent repeated ABS warnings.
How to Check the Wiring and Connector
1. Check the Tightness of the Plug Connection
To properly check the ABS wiring, first check how tightly the plug is connected to the sensor.
The ABS sensor constantly sends electrical signals to the control module and a loose plug can interfere with these signals.
Vibrations from driving, potholes in the road, or worn locking clips can cause the connector to loosen over time.
When the plug is not secure, the sensor may send a weak or unstable signal, often causing the ABS warning light to illuminate.
Ensuring that the connector is firmly locked in place helps maintain a continuous flow of information from the sensor, allowing the ABS system to function properly during braking.
2. Look for Broken Wires or Open Circuits
Broken wires or open circuits in the ABS wiring harness are one of the most common causes of sensor failure.
The wires pass through areas that are constantly in motion, such as the suspension and wheel assembly, causing them to twist, bend and stretch.
Over time, this can break or weaken the copper core within the insulation.
Complete wear and tear in the wire will completely block the electrical signal, while minor wear and tear can cause varying readings, confusing the ABS system.
Looking for cuts, kinks, or exposed copper along the entire length of the wire helps you determine if the problem is in the wiring rather than the sensor itself.
3. Check for moisture damage inside the connectors.
Moisture entering the ABS connector can cause serious electrical problems because water disrupts electrical flow and can corrode the metal pins.
ABS connectors are often installed near wheel wells, where they are exposed to rainwater, road potholes, car washes and mud.
When moisture gets inside, it can cause temporary communication failure or, if corrosion spreads, permanent sensor failure.
During the inspection, the connector should be disassembled and inspected for any signs of moisture, rust-colored stains, or green deposits, which are signs of corrosion.
Early detection of moisture damage can prevent long-term malfunctions and maintain sensor performance.
4. Clean the connector with electrical contact cleaner
Cleaning the ABS connector with electrical contact cleaner helps remove dirt, oil, moisture and corrosion that can affect the sensor’s signal.
Electrical contact cleaner is designed to evaporate quickly without leaving any residue, making it safe for sensitive electronic parts.
By spraying the cleaner on the connector pins and inside the plug, you can improve the electrical contact between the sensor and the wiring harness.
This step is specially useful if the ABS light is illuminated due to a poor connection, not a faulty sensor.
After cleaning, allow the connector to dry completely before reinstalling it to ensure proper electrical flow.
How to Use an OBD-II Scanner for Diagnosis
1. Scan for ABS-Specific Trouble Codes
Scanning for ABS-specific trouble codes is the first and most important step when using an OBD-II scanner, as these codes come directly from the ABS control module and indicate which part of the system is experiencing the problem.
ABS systems store very detailed fault information, such as a bad sensor circuit, a low or missing wheel-speed signal, or a communication problem with the module.
These codes save you guesswork and instead allow you to begin the diagnostic process with accurate, system-generated information.
2. Identify Which Wheel Sensor is Failing
An OBD-II scanner can also help you identify which wheel sensor is failing by pointing it at a specific location, such as front-left, front-right, rear-left, or rear-right.
This level of accuracy saves time because you don’t need to inspect every wheel when only one wheel is experiencing problems.
When the scanner highlights a specific wheel, it usually means that the sensor for that wheel isn’t sending the correct signal or there’s a wiring problem, allowing you to focus your investigation on the right area.
3. If available, check live wheel-speed data
Many advanced scanners allow you to check live wheel-speed data, which is one of the most valuable diagnostic features.
Live data shows how fast each wheel is rotating while the vehicle is moving or when the wheel is manually rotated.
A properly functioning ABS sensor will show smooth and consistent speed readings.
If a sensor shows zero speed, jumps between values, or lags behind the other wheels, it means the sensor may be dirty, damaged, misaligned, or internally defective.
This real-time information helps you identify problems as soon as they occur, rather than relying solely on static codes.
4. Compare left and right wheel readings for inconsistencies
Comparing left and right wheel readings can help you identify inconsistencies that could indicate a deeper problem, such as a bad sensor, a broken tone ring, or corrosion around the mounting area.
Wheels on the same axle should generally show very similar readings when rotating at the same speed.
If one wheel shows a slow or unstable signal while the other is stable, the scanner helps confirm that the problem is sensor-related, not the brakes, tires, or mechanical components.
This comparison method increases your diagnosis accuracy and increases confidence in identifying the true cause of the ABS warning.
How to Test ABS Sensor Resistance with a Multimeter
1. Disconnect the sensor from its wiring connector
The first step in testing an ABS sensor with a multimeter is to disconnect the sensor from its wiring connector so you can measure its internal resistance without any interference from the vehicle’s electrical system.
When the sensor is connected, readings can be affected by other circuits, leading to inaccurate results.
Disconnecting the sensor ensures that the sensor is isolated, allowing the multimeter to read only the sensor’s internal coil, not any surrounding components.
2. Set the multimeter to Resistance (Ohm) Mode
Once the sensor is disconnected, the multimeter must be set to Resistance Mode, often labeled with an Ohm or Ω symbol.
This setting allows the device to measure the electrical resistance passing through the sensor’s internal coil.
ABS sensors work by generating or reading magnetic signals from wheel movement and this process relies on a healthy coil inside the sensor.
Measuring resistance helps determine whether the coil is still functioning properly.
3. Measure the Sensor’s Internal Coil Resistance
When you place the multimeter probe on the sensor terminal, it measures the internal coil resistance, which tells you whether the sensor’s internal structure is in good condition.
A healthy ABS sensor will show a stable resistance value that falls within a fixed range, depending on the sensor’s design.
If the reading fluctuates, fluctuates significantly, or shows strange patterns, it could indicate bad wiring inside the sensor, corrosion on the terminal, or a small crack in the coil.
4. Compare the results with manufacturer specifications
Once you have a resistance reading, it’s important to compare the results with the manufacturer’s specifications because each type of ABS sensor has its own expected resistance range.
For example, many passive ABS sensors read between 800 and 2000 ohms, but this can vary depending on the vehicle.
When the reading matches the expected range, it means the sensor’s internal coil is functioning properly.
If the reading is too high or low, it indicates that the sensor may not be properly sending a wheel-speed signal to the ABS module.
5. Meaning of an Open Circuit or No Reading
If the multimeter displays a no reading, infinite resistance, or open circuit message, it means the internal coil is completely broken and the sensor cannot generate or sense a wheel-speed signal at all.
An open circuit means the sensor has lost electrical continuity, making it inoperable and requiring replacement.
This type of reading is one of the clearest signs of ABS sensor failure and provides a definitive answer as to why the ABS warning light may be activated.
Read More:
How to Test the ABS Sensor Voltage Output
1. Set the Multimeter to AC Voltage Mode
To test the ABS sensor’s voltage output, the multimeter must be set to AC voltage mode because most wheel-speed sensors generate an alternating current signal when the wheel is rotating.
This AC voltage indicates how fast the wheel is rotating and its strength increases with speed.
Choosing the correct setting ensures the multimeter accurately detects the sensor’s output and prevents false readings that can occur if the multimeter is left in DC mode.
2. Rotate the Wheel by Hand
After connecting the multimeter probes to the sensor terminals, manually rotate the wheel to allow the sensor to generate its voltage signal.
For most sensors, even slow rotation is enough to generate a measurable output.
This step simulates real-life driving conditions because ABS sensors generate their signals based on wheel movement.
Rotating the wheel helps you check whether the sensor responds properly to motion and sends the necessary information for anti-lock braking.
3. Look for Voltage Output Fluctuations
As the wheel rotates, a working ABS sensor will show voltage fluctuations on the multimeter, usually fluctuating smoothly with rotational speed.
This fluctuation is normal and indicates that the magnetic field around the sensor is being disturbed by the passage of the teeth of the tone ring.
A good sensor shows consistent, rhythmic voltage changes that vary with wheel speed.
If the reading is weak, irregular, or unstable, it may mean the sensor is dirty, misaligned, or internally damaged.
4. Compare Voltage Waves Between Wheels
For the most accurate diagnosis, comparing the voltage output of one wheel sensor to another on the same axle helps determine whether the readings are normal.
The sensors on the left and right wheels should produce similar voltage patterns when rotating at the same speed.
A large difference between them could indicate a faulty sensor, a bent or damaged tone ring, or debris obstructing the magnetic field.
This comparison helps you clearly understand whether the problem is limited to a single sensor or related to mechanical components.
5. Identify sensors with no output signal
If a sensor produces no voltage signal at all when the wheel is rotating, it means the sensor cannot detect wheel movement and is likely faulty.
A zero signal usually indicates an internal fault, such as a broken coil, bad wiring, or a sensor that has separated from its magnetic core.
This result clearly explains why the ABS warning light may be on and confirms that the sensor needs to be repaired or replaced for the system to function properly.
How to Test the Tone Ring/Reflector Wheel
1. Check for cracks, missing teeth, or warping
The tone ring, also known as the reflector wheel, is a vital component of the ABS system as it provides the magnetic signal pattern that the sensor reads.
It’s crucial to check for cracks, missing teeth, or warping, as even minor damage can interfere with the sensor’s ability to accurately detect wheel speed.
A broken or damaged tone ring can generate irregular magnetic pulses, which the ABS module interprets as wheel slippage, causing the ABS to activate incorrectly or trigger a warning light.
Early identification of physical damage helps prevent false signals and ensures accurate braking control.
2. Check for corrosion or metal chips that may affect readings
Corrosion or metal chips on the tone ring can interfere with the magnetic field necessary for the ABS sensor to function properly.
Rust creates rough surfaces that distort the magnetic pattern, while metal fragments can stick to the ring and prevent the sensor from reading clear pulses.
Over time, rust can stretch or warp the tone ring, resulting in inconsistent wheel-speed signals.
Ensuring the ring is clean and free of debris helps maintain accurate readings and prevents the ABS system from misinterpreting sensor information.
3. Check the Distance Between the Sensor and Tone Ring
The space between the ABS sensor and tone ring, often called the air gap, must be perfect to provide a clear signal.
If the gap is too large, the sensor may produce a weak or unreliable signal.
If the gap is too small, it can cause physical contact, potentially damaging both the sensor and tone ring.
Varying distances can be caused by rust, a bent mounting bracket, or worn bearings.
Checking this gap ensures the sensor can clearly detect the magnetic pulses and helps the ABS function smoothly and reliably.
4. Ensure the tone ring is properly aligned on the axle or hub
Proper alignment of the tone ring on the axle or hub is crucial, as misalignment can cause the sensor to read incorrect or inconsistent signals.
If the tone ring is slightly displaced, loose, or misplaced, it may move when the wheel is turned, causing irregular pulses that can confuse the ABS module.
This misalignment can lead to incorrect activation, traction control problems, or inaccurate wheel-speed readings.
Ensuring the tone ring is securely and correctly positioned helps maintain precise braking control and prevents unnecessary ABS warnings.
How to Clean the Sensor and Tone Ring
1. Use a Soft Brush to Remove Dirt
Cleaning the ABS sensor and tone ring begins by gently removing dirt, dust and road debris with a soft brush, which can interfere with the magnetic signal.
Even a thin layer of dirt can interfere with the sensor’s wheel speed reading, as the sensor relies on clear, uninterrupted pulses from the tone ring.
A soft brush ensures that the sensor’s delicate surface is not scratched or damaged, while also providing effective cleaning.
This simple step helps restore clear signal transmission and can sometimes fix ABS problems without replacing parts.
2. Clean Rust with Brake Cleaner
Rust on the tone ring and sensor attachment points is a common problem, specially in humid or winter environments.
Using brake cleaner helps dissolve the rust and remove dirt that can interfere with the sensor’s magnetic reading.
Brake cleaner evaporates quickly and leaves no residue, making it ideal for cleaning surfaces that must remain dry for ABS to function properly.
Removing rust restores smooth magnetic interaction between the tone ring and sensor, allowing the ABS module to receive accurate speed information.
3. Avoid Excessive Force
When cleaning, it’s important to avoid excessive force, as the ABS sensor and tone ring are precision components that require precise positioning.
Excessive pressure can dislodge the sensor or damage the teeth of the tone ring, leading to a weak signal or inaccurate readings.
Gentle and careful cleaning maintains the correct distance between the sensor and tone ring, ensuring the system continues to function as designed without any new problems.
4. Ensure the correct air-gap distance after cleaning
After cleaning, ensuring the correct air-gap distance between the sensor and tone ring is crucial for proper operation.
This gap determines how well the sensor detects changes in the magnetic field as the wheel rotates.
If the gap is too wide, the sensor may produce a weak signal; if it is too narrow, contact with the tone ring may damage the sensor.
Checking the gap ensures that the sensor captures clear and consistent wheel-speed data, which improves the accuracy of the ABS system after the cleaning process.
How to Reinstall the ABS Sensor
1. Properly Align the Sensor in Its Mounting Hole
To reinstall the ABS sensor, carefully align it in its mounting hole so that it is at the correct angle and distance from the tone ring.
ABS sensors rely on precise positioning to accurately read magnetic pulses and even slight tilt or misalignment can weaken the signal or cause discrepancies in wheel-speed readings.
Ensuring proper alignment ensures smooth sensor operation and prevents problems such as incorrect ABS activation or warning lights triggered by incorrect signal detection.
2. Tighten the Bolts to the Recommended Torque
Once the sensor is aligned, it is important to tighten the bolts to the manufacturer’s recommended torque, as both overtightening and undertightening can cause problems.
Overtightening may crack the sensor housing or damage the mounting bracket, while undertightening may cause the sensor to vibrate during driving, resulting in unstable readings.
Proper torque ensures the sensor stays firmly in place without damage, providing long-term stability and reliable operation.
3. Ensure the wiring is installed correctly
Properly installing the sensor wiring is crucial because the ABS sensor wires are designed to follow specific paths to avoid contact with moving parts such as the axle, suspension components, or brake assembly.
Improper installation can cause the wires to rub, tug, or become compressed, resulting in a short circuit, open circuit, or intermittent signal.
By following the original wire path and using the provided clips or holders, you can prevent wiring damage and ensure consistent communication between the sensor and the ABS module.
4. Ensure the Connector Locks
After reconnecting the wiring harness, it’s important to ensure the connector is securely locked in place.
A loose connector can cause sensor signal interference, sudden flashing of the ABS warning light, or even complete sensor failure while driving.
Most connectors have a built-in locking mechanism that clicks into place when fully reinserted.
Checking this ensures proper electrical contact, stable data transmission and reliable ABS performance after the sensor is reinstalled.
How to Reset the ABS Warning Light
1. Clear Codes Using a Scan Tool
Resetting the ABS warning light usually requires clearing stored trouble codes using a scan tool, as the ABS module keeps a record of any detected faults until they are manually erased.
Even after the problem is fixed, the light may remain on if codes are still stored.
A scan tool communicates directly with the ABS system and clears all fault memory, allowing the module to restart and monitor real-time signals without old errors.
This ensures that the ABS system accurately reflects the current condition of sensors and components.
2. Allow the System to Reset Automatically After Driving
In many vehicles, the ABS system can automatically reset after driving after the fault has been fixed.
As the vehicle moves, the ABS module rechecks all wheel-speed sensors and internal circuits to ensure the problem has been fixed.
If all sensor signals are within the normal range, the system can turn off the warning light without manual clearing.
This automatic reset feature is specially common after minor issues like dirty sensors or loose connectors have been fixed and it helps confirm that the system is now seeing consistent and stable data.
3. Recheck for Returning Codes
After clearing codes or allowing the system to reset itself, it’s important to recheck for returning codes, as recurring malfunctions indicate that the underlying problem hasn’t been completely fixed.
If the same code reappears, it could indicate a deeper issue, such as faulty wiring, a bad ABS module, or a tone ring problem that wasn’t detected during inspection.
This step helps confirm that the repair was successful and ensures that the ABS system isn’t masking an ongoing problem.
4. Test drive to confirm ABS is working properly
A final test drive helps confirm that ABS is functioning properly because it allows the system to monitor the wheel-speed sensors under realistic driving conditions.
During the test drive, the ABS control module checks that all wheels are providing accurate and stable signals and verifies that no new faults have occurred.
If the warning light remains off and the vehicle brakes smoothly without any unusual vibrations or traction control issues, the system is functioning properly.
This step reassures you that the ABS repair was effective and the braking system is operating safely.
Know, When You Actually Need to Replace ABS Sensor
As well as, a MDPI’s Energy Journal shows that the ABS helps to prevent wheel lock in the slippery conditions, but the design issues such as: sensor or tone-ring misalignment can make it “chattering” and also it negatively affects braking performance, which is why you should carefully inspect and test ABS sensors to prevent performance loss.[¹]
1. No resistance detected
When the ABS sensor shows no errors, it is essential to replace it, as this means the coil inside is completely damaged and can no longer generate the magnetic signals needed for wheel-speed monitoring.
A sensor with an open circuit cannot send any electrical data to the ABS module and the system will immediately recognize this as a fault.
Because the coil is a sealed component that cannot be repaired, the only way to restore proper ABS function and eliminate the associated warning light is to replace the sensor.
2. No Voltage Output During Wheel Rotation
If the sensor does not output any voltage during wheel rotation, it means the sensor cannot respond to the movement of the tone ring, which is necessary for generating wheel-speed information.
This usually means that the magnetic core or the circuitry inside is damaged and without voltage output, the ABS module receives no real-time data about wheel movement.
A sensor that doesn’t respond can’t be cleaned or adjusted back to working condition, so it must be replaced to ensure safe braking performance.
3. Cracked or broken sensor body
Cracked or broken sensor body is another clear sign that it needs replacement, as physical damage exposes internal components to moisture, dirt and road debris.
Once the protective housing is damaged, the sensor quickly deteriorates and begins to send different or incorrect signals.
Damaged housing can allow the sensor to shift in its mounting position, causing misalignment with the tone ring.
This type of damage cannot be repaired, so replacement is the only reliable solution.
4. Bad wiring that can’t be fixed
When the wiring connected to the ABS sensor is excessively worn, cut, or simply cannot be repaired, the sensor will not receive or transmit the correct electrical signal.
ABS wiring is designed to maintain consistent conductivity and any wear or severe damage disrupts communication with the ABS control module.
If the wiring is so damaged that it cannot be re-soldered, re-insulated, or reconnected safely, replacing the entire sensor assembly ensures proper signal flow and restores system reliability.
5. Persistent ABS Codes Even After Testing
If the same ABS fault codes recur even after cleaning, adjusting, or testing the sensor, it means the sensor is internally faulty.
Persistent codes mean the ABS module is repeatedly detecting signal errors, signal loss, or discrepancies in wheel-speed readings.
Even if the sensor appears fine, internal components such as the coil or magnetic core may be damaged.
When all other causes have been eliminated, sensor replacement becomes the most effective and reliable way to permanently fix the problem.
Conclusion – How To Check ABS Sensor
It is really important to maintain the ABS sensor as behind every smooth and controlled stop these small ABS sensors works silently, which is why you should keep them in good conditions to ensure your braking system responds exactly when you need it.
Because ABS sensors constantly monitor wheel speed and immediately report irregular movement to prevent dangerous wheel lock-up, even a minor malfunction can alter your braking system’s response in an emergency.
By recognizing signs of sensor failure, such as incorrect wheel readings or faulty wiring and using basic diagnostic tools to confirm voltage and resistance levels, drivers can prevent more serious braking problems and avoid unnecessary repair costs.
Regular inspections, carefully installing replacement parts and verifying that the ABS light resets properly after repairs are simple steps that can make a big difference in long-term braking performance.
When the sensor no longer displays resistance, fails to produce voltage, or continues to trigger a fault code despite repairs, replacement becomes the safest and most reliable solution.
With the right information and attention, maintaining ABS sensors becomes a simple task that keeps braking smooth, safe and responsive in every driving condition.
So, that’a all from this guide and if you still wanted to ask something about this topic, then just comment down below for more.
Frequently Asked Questions
Q1. What happens if the ABS sensor fails?
Answer: When an ABS sensor fails, the ABS warning light usually comes on and the system stops working properly. This means the car may lose its ability to prevent wheel lock-up during sudden braking. You’ll still have regular brakes, but the extra safety and stability provided by ABS won’t work. A faulty sensor can also cause malfunctions in traction control and stability control systems, as they rely on accurate wheel-speed readings.
Q2. How do I know if the ABS sensor needs to be replaced?
Answer: If the ABS sensor fails a basic resistance test, produces no voltage during wheel rotation, or continues to trigger an ABS fault code even after cleaning and inspecting the wiring, it needs to be replaced. Physical damage, such as cracks, a broken plastic housing, or worn wiring, is another clear sign. If the sensor doesn’t respond at all during a diagnostic check with a scan tool or multimeter, replacing it is the safest option.
Q3. Can I drive with a faulty ABS sensor?
Answer: Yes, the car can still drive and the basic braking system will work, but the ABS won’t activate. This means that the wheels may lock up during emergency braking, leading to skidding or loss of control on slippery roads. Driving with a faulty sensor is risky, specially in rain, snow, or loose gravel. It’s always best to have this problem fixed as soon as possible to restore full braking stability.
Q4. Why does the ABS light remain on even after repair?
Answer: The ABS light may remain on if there are old fault codes stored in the system that need to be cleared using a scan tool. Sometimes, the new sensor may not be installed properly, the wiring may still be faulty, or another wheel sensor may be faulty. In some cases, the ABS module itself must complete a short drive cycle before automatically turning off the light. Checking the returning code after a test drive helps confirm whether the repair was completely successful.
Q5. How do mechanics test ABS sensors?
Answer: Mechanics typically test ABS sensors using a multimeter to check resistance and voltage. A working sensor should display a specific resistance range, depending on the type. When the wheel is manually rotated, the sensor should produce a small AC voltage. If there is no reading, the sensor or its wiring is faulty. They also use a scan tool to read wheel speed data in real time. If the wheel displays incorrect or no speed signal while driving, the sensor is considered faulty.
Q6. Does cleaning the ABS sensor fix it?
Answer: Sometimes cleaning can fix the problem, specially if the problem is caused by road grime, metal shavings, or corrosion around the sensor or tone ring. However, cleaning only works if the sensor itself is working. If the electronics inside are faulty, cleaning won’t help and the sensor will need to be replaced.
Q7. Why do ABS sensors fail so often?
Answer: ABS sensors fail because they are located very close to the wheel, where they are constantly exposed to dirt, water, heat and road vibrations. Over time, moisture can get into the wiring, metal debris can stick to the magnetic tips, or the wiring insulation can crack. Snow, salt, potholes and mud also accelerate vehicle wear, specially in older vehicles.
Q8. How much does it cost to replace an ABS sensor?
Answer: The cost depends on the car model and the type of sensor. Typically, replacing a sensor can cost a low to medium amount, while professional labor can cost more depending on how difficult the sensor is to access. Some vehicles have sensors located in locations that require the removal of brake or suspension parts, which can increase labor time.
References:
[1] Performance Review of Three Car Integrated ABS Types: Development of a Tire Independent Wheel Speed Control
https://www.mdpi.com/1996-1073/13/23/6183
Guys, I’m a car audio enthusiast and customization expert and I love clear sound and clean installation. Plus, I have spent years helping people build their dream audio setups. And whenever I’m working on cars, I probably listen to music and thinks about the next big upgrade.
