Literally, the ABS warning light means it is a signal from your car’s safety system, as modern cars actually rely on ABS to prevent wheel lockup, so if the ABS light is on then it means the system cannot help you in an emergency stops, so better to diagnose it.
And, the Anti-Lock Braking System was first widely introduced in the passenger vehicles during the late 1980s and till now it is mandatory in most of the countries as it literally reduces skidding and actually helps a driver to maintain steering control during the sudden braking.
So, whenever the ABS light turn on then it clearly means that the system has actually detected something faulty and has switched off to protect itself from further damage as well.
Yes, it doesn’t mean that it will stop your car’s normal brakes from working at all, but it actually removes the added safety of anti-lock control, which is really helpful specially on wet or slipper roads.
Plus, studies from NHTSA also shows that the ABS can shorten the stopping distance on the wet roads and that significantly reduces loss-of-control during crashes, which is why it is really important to diagnose the warning light without ignoring it.
Also, most of the time the ABS problems comes from issues such as: dirty wheel sensors, wiring damage, low braking fluid or just a falling ABS module as well, which all can affect how the system reads wheel speeds and controls the brake pressure.
Now, this is the guide which is specifically focuses on How to Diagnose ABS Warning Light so that you can prevent expensive future repairs and helps you to ensure safe driving in every conditions.

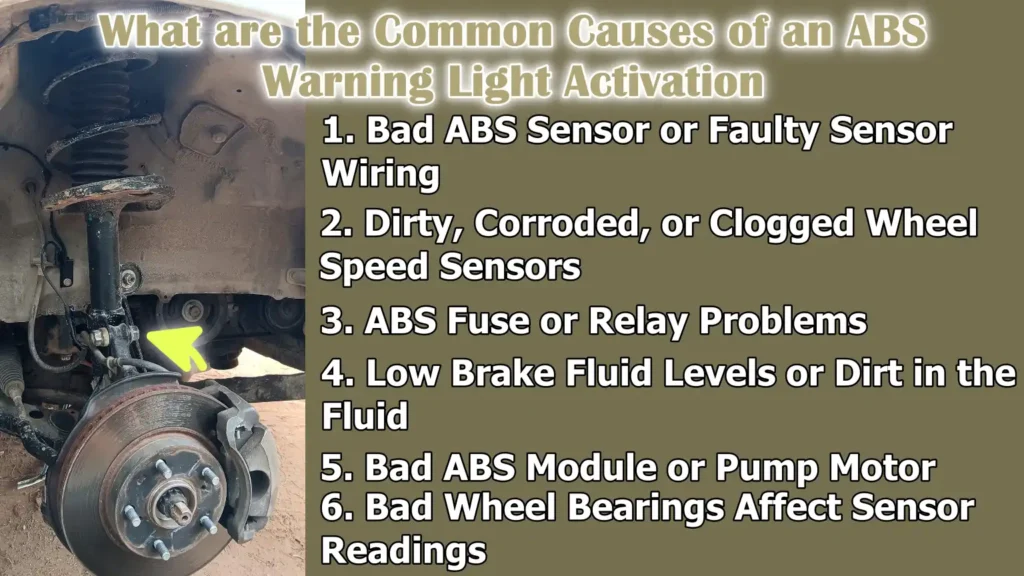

What are the Common Causes of an ABS Warning Light Activation
1. Bad ABS Sensor or Faulty Sensor Wiring
ABS sensors are small electronic devices located near each wheel that monitor how fast the wheels are rotating.
If a sensor malfunctions or its wiring is damaged, the ABS control module cannot accurately read the wheel speed.
This can cause the ABS warning light to illuminate on your dashboard.
Common causes of sensor failure include physical damage from dirt, moisture, or road debris.
Bad wiring, worn cables, or loose connectors can also interfere with the signal and cause the system to detect a malfunction.
Regularly inspecting these sensors and their wiring can prevent the ABS light from suddenly activating.
2. Dirty, Corroded, or Clogged Wheel Speed Sensors
Wheel speed sensors work best when their surfaces are clean and free of debris.
Dirt, rust, or metal particles from brake components can accumulate on the sensor or tone ring, causing inaccurate readings.
When the sensor cannot accurately detect wheel rotation, the ABS system may sense a problem and trigger a warning light.
Cleaning the sensor and ensuring the tone ring is free of corrosion can help the ABS function properly.
3. ABS Fuse or Relay Problems
The ABS system relies on electrical fuses and relays to provide power and control signals.
A blown fuse or faulty relay can prevent the ABS module from functioning, causing the ABS warning light to illuminate.
These parts are usually located in the fuse box and checking them is an easy and effective way to diagnose some ABS problems.
Replacing a blown fuse or faulty relay often restores normal ABS function immediately.
4. Low Brake Fluid Levels or Dirt in the Fluid
Brake fluid is essential for both regular braking and ABS operation.
Leaking or worn brake pads can cause low fluid levels, while bad fluid can contain moisture or debris.
Both conditions can affect ABS performance and trigger a warning light.
Regularly checking the brake fluid level and replacing it according to the manufacturer’s recommendations can prevent ABS malfunctions and ensure safe braking.
5. Bad ABS Module or Pump Motor
The ABS module is the central computer that controls the ABS system, while the pump motor regulates hydraulic pressure in the brake lines during ABS operation.
If any of these components malfunction, the ABS system may stop functioning properly and trigger a warning light.
Malfunctions can be caused by electrical problems, internal corrosion, or age-related wear.
Diagnosing these problems usually requires a professional scan tool and sometimes component replacement.
6. Bad Wheel Bearings Affect Sensor Readings
Wheel bearings allow wheels to rotate smoothly, but worn or defective bearings can cause uneven wheel rotation.
Because ABS sensors rely on continuous wheel speed data, bad bearings can give inaccurate readings and trigger the ABS warning light.
Symptoms often include strange noises, vibrations, or uneven tire wear.
Checking and replacing worn bearings can help restore accurate sensor signals and proper ABS function.
How to Do Initial Visual Inspection
1. Check for cuts or corrosion in the ABS sensor wires
ABS sensor wires are responsible for carrying signals from each wheel sensor to the ABS control module.
Over time, these wires can become worn, damaged, or damaged by road debris, moisture, or extreme temperatures.
Bad connectors can also interfere with the signal and trigger the ABS warning light.
The first step in diagnosing ABS problems is to carefully inspect each wire for cuts, cracks, or corrosion.
Repairing or replacing the damaged wire can often restore proper ABS function without the need for expensive parts.
2. Check for dirt around the wheel speed sensor
Wheel speed sensors rely on a clean and precise connection with the tone ring to accurately detect wheel rotation.
Dirt, mud, rust, or brake dust can accumulate around the sensor or tone ring, causing inaccurate readings.
Even a small layer of dirt can obstruct the signal and trigger the ABS warning light.
Cleaning the sensor and surrounding area with a soft cloth or brake cleaner ensures accurate readings and prevents unnecessary warning alerts.
3. Check the Brake Fluid Reservoir for Correct Fluid Levels
The brake fluid reservoir provides hydraulic pressure for both normal braking and the ABS system.
Low brake fluid levels can be caused by leaks, worn brake pads, or evaporation over time.
Poor fluid, which may contain moisture or particles, can also affect ABS performance.
Regularly checking the fluid level and refilling it to the manufacturer’s recommended level ensures the ABS system has the proper pressure for proper functioning.
This also prevents damage to ABS components due to low or poor fluid.
4. Check Dashboard Warning Light Combinations (ABS + Traction Control)
Modern vehicles often integrate ABS with traction control and stability systems.
If multiple warning lights are on simultaneously, such as the ABS light along with the traction control or stability control light, it could indicate a shared sensor or module problem.
Identifying which lights are on can provide clues to the underlying cause and help prioritize inspections.
Identifying these combinations early can lead to accurate troubleshooting, save time and avoid unnecessary repairs.
How to Scan the ABS System with a Diagnostic Tool
1. Connecting an OBD-II Scanner Capable of Reading ABS Codes
Modern vehicles are equipped with an on-board diagnostic system (OBD-II) that can communicate with various control modules, including the ABS module.
To scan for ABS problems, you need a scanner specifically capable of reading ABS codes, as standard OBD-II scanners can only read engine or emission codes.
By connecting the scanner to the vehicle’s diagnostic port, usually located under the dashboard, you can access the ABS system and check for faults.
This connection is the first step toward identifying the exact cause of the ABS warning light.
2. Retrieving Stored ABS Trouble Codes
Once the scanner is connected, it can retrieve stored ABS trouble codes.
These codes are generated when the ABS system detects a fault and are stored in the module until they are fixed.
Finding these codes helps identify which component or sensor is triggering the warning light.
Each code is associated with a specific problem, allowing mechanics and vehicle owners to identify areas that require inspection or repair.
3. Understanding Common ABS Codes – C0035, C0040 & C0050
ABS trouble codes follow a standard format, usually beginning with the letter “C” for a chassis-related system, followed by four digits.
For example, C0035 may indicate a fault in the left front wheel speed sensor circuit, C0040 may indicate a problem with the right front wheel sensor and C0050 is often associated with the left rear wheel sensor.
Understanding the meaning of these codes can help vehicle owners identify whether the problem is sensor-related, wiring-related, or the ABS module itself, making diagnosis faster and more accurate.
4. Using Live Data to Monitor Wheel Speed Sensor Readings
Many advanced ABS scanners provide a live data stream from each wheel speed sensor.
This allows you to view real-time readings as the wheels rotate, helping to detect inconsistency, dropouts, or unusual behavior that may not yet trigger a stored code.
Monitoring live data helps confirm whether a sensor is faulty, a wire is damaged, or an intermittent problem in the ABS system.
This step is crucial because ABS problems are often caused by minor signal errors that only appear under specific driving conditions.
How to Test ABS Wheel Speed Sensors
1. Locating the Sensors on Each Wheel
ABS wheel speed sensors are typically installed near the wheel hub or brake rotor of each wheel.
They are designed to measure how fast each wheel is rotating and send this information to the ABS control module.
Locating these sensors is the first step in diagnosing ABS problems.
In most vehicles, they are located near the tone ring, a toothed or magnetic ring attached to the wheel or axle.
Knowing their exact location makes it easier to physically inspect them and prepare them for testing.
2. Testing the Sensors Using a Multimeter – Resistance, Voltage Output
A multimeter is an essential tool for checking whether the ABS sensors are functioning properly.
The resistance of the sensor can be measured to ensure it is within the manufacturer’s recommended range.
Some sensors also generate a small voltage when the wheel is manually rotated, which can be measured using a multimeter in AC mode.
If the readings are outside the stated values or indicate an open or short circuit, the sensor is likely faulty and needs to be replaced.
This testing method helps identify sensor problems without relying solely on warning lights or codes.
3. Using Scan Tool Live Data to Verify Real-Time Sensor RPM
Advanced diagnostic tools can display live data from each ABS sensor while the vehicle is moving or the wheels are rotating.
This real-time information provides accurate speed readings for each wheel, helping to identify discrepant or missing signals that could indicate a sensor fault, wiring fault, or tone ring misalignment.
Viewing live RPM data ensures a more accurate diagnosis than static resistance testing alone, specially for problems that may only be visible during driving.
4. Checking Sensor Mounting Position and Air Gap Alignment
The performance of an ABS sensor depends on its correct position relative to the tone ring.
If a sensor is too far or too close to the ring, it may not send the correct signal, causing the ABS light to come on.
Checking the mounting location and measuring the air gap ensures that the sensor is accurately reading wheel rotation.
Many manufacturers provide specific clearance values that must be adhered to.
Correct alignment is crucial because if the sensor is not installed correctly, it will not be able to communicate properly.
Read More:
How to Check the ABS Tone Ring and Wheel Bearing
1. Check the Tone Ring for Cracks, Missing Teeth, or Corrosion
The ABS tone ring, also known as the reluctor ring, is a metal ring with evenly spaced teeth that rotates with the wheel or axle.
It works with the ABS sensor to detect wheel speed.
Over time, the tone ring can become cracked, worn, or accumulate rust and debris, preventing the sensor from accurately reading wheel speed.
Even minor defects can cause the ABS light to illuminate.
To ensure the ABS system is functioning properly, it is crucial to check the tone ring for any physical damage or corrosion.
Cleaning or replacing a damaged tone ring can provide accurate sensor readings.
2. Check for Correct Alignment Between the Tone Ring and Sensor
The distance and alignment between the ABS sensor and tone ring are crucial for accurate wheel speed readings.
If the sensor is too far or too close to the tone ring, it may produce a weak or inconsistent signal, which could trigger the ABS warning light.
Manufacturers typically provide specific air gap measurements that must be maintained.
Verifying that the tone ring and sensor are properly aligned ensures the sensor can accurately detect each tooth, which is essential for reliable ABS operation.
3. Identifying Wheel Bearing Play Affecting the Sensor Signal
Wheel bearings allow the wheel to rotate smoothly, but worn or loose bearings can cause movement that affects the tone ring’s position relative to the sensor.
This irregular movement can produce a faulty signal, causing the ABS light to illuminate, even if the sensor and tone ring are in good condition.
Checking wheel bearing play by gently rocking the wheel or measuring sideways movement can help identify potential problems.
Replacing worn bearings restores proper alignment and consistent wheel speed signals to the ABS system.
How to Check ABS Fuses, Relays and Wiring Harnesses
1. Locating the ABS Fuse in the Fuse Box
The ABS system relies on a specific fuse to power its control module.
The fuse is usually located in the vehicle’s main fuse box, which can be found under the dashboard or in the engine compartment.
The vehicle owner’s manual provides the exact location and amperage rating of the ABS fuse.
Locating this fuse is the first step in determining if a minor electrical problem is causing the ABS warning light to illuminate.
2. Checking for and Replacing Blown Fuses
A blown ABS fuse interrupts power to the ABS module, causing the system to malfunction and the warning light to illuminate.
Fuses can fail due to power fluctuations, short circuits, or normal wear over time.
Inspecting the fuse or testing it with a multimeter can confirm whether it is blown.
Replacing a blown fuse with the correct amperage often restores normal ABS function and illuminates the warning light.
3. Testing the ABS Relay for Proper Continuity
Relays act as electrically controlled switches that allow the ABS module to operate pumps, valves and other components.
A faulty relay can prevent the ABS system from receiving essential signals, causing the warning light to illuminate.
Testing the relay involves checking for proper continuity and voltage using a multimeter or replacing it with a similarly functioning relay.
Ensuring that the relays are functioning properly is crucial for the ABS system to function reliably.
4. Checking the Wiring Harness for Damage, Compressed Wires, or Corrosion
The ABS wiring harness connects the sensors, relays and module to ensure proper signal transmission.
Wires can be damaged due to wear, compression, corrosion, or rodent activity.
A tear or short in the harness can disrupt communication and cause the ABS warning light to come on.
Carefully tracing the wiring harness, inspecting connectors and repairing or replacing damaged parts ensures uninterrupted power flow and proper ABS function.
How to Check the ABS Control Module
1. Identifying Signs of a Malfunction in the ABS Module
The ABS control module is the central computer that manages the anti-lock braking system.
Internal malfunctions can be caused by age, heat, moisture, or electrical fluctuations.
Signs of a module malfunction include the ABS warning light remaining on continuously, the ABS not functioning properly when braking, or multiple ABS-related fault codes appearing on a scan tool.
Recognizing these signs early is crucial to avoiding dangerous braking situations.
2. Checking for Corrosion in the Module Connectors
Moisture and dirt can accumulate on the ABS module’s electrical connectors, causing corrosion and damaging the electrical contacts.
Corroded connectors can cause intermittent malfunctions, inaccurate sensor readings, or complete module failure.
Visually inspecting the connectors and carefully cleaning them with contact cleaner helps ensure reliable communication between the module and the wheel sensors.
3. Checking the Module Power Supply and Ground Circuits
For the ABS module to function properly, it must receive consistent power and a good ground connection.
Using a multimeter, you can check the module’s voltage supply and ground connections.
Problems such as blown fuses, damaged wires, or loose connections can disrupt power and trigger the ABS warning light.
Verifying these circuits ensures that the module is receiving the necessary power to properly control the system.
4. When Module Reprogramming or Replacement Is Necessary
In some cases, if internal circuits become damaged or a software error occurs, the ABS module may require reprogramming or complete replacement.
Reprogramming may be necessary after repair, module replacement, or updating the vehicle’s software to factory standards.
Replacement is usually required when the module has an internal fault that cannot be repaired.
Both processes should be performed using manufacturer-approved tools and software to restore the full functionality of the ABS and ensure safety.
How to Do Road Testing and Verification
The NHTSA behavioral work shows that the ABS system actually provides measurable benefits in emergencies, so whenever the you see the illuminated ABS warning light then you should be aware of the fact that it effectively removes that added protection: so make timely diagnosis which is very crucial.[¹]
1. Monitoring ABS Performance During Controlled Braking
After repairing or inspecting the ABS system, it’s important to perform a controlled road test to ensure the system is functioning properly.
Controlled braking involves driving at a safe speed on a dry or slightly wet surface and applying the brakes forcefully in an emergency.
During this test, the ABS should activate smoothly, maintain steering control and ensure the wheels don’t lock.
Observing the vehicle’s response during braking helps verify that the sensor, tone ring and module are working properly together.
2. Confirming that the ABS light is on after repair
After the ABS component is repaired, cleaned, or replaced, the ABS warning light should turn off.
If the light remains on, it may mean that the original problem hasn’t been completely fixed or that a new problem has arisen.
Confirming that the ABS light is on is important to ensure that the system is fully functional and that the vehicle’s safety features are working properly.
3. Using a scanner to clear stored codes after the problem has been fixed
Even after repairs, the ABS module may store old fault codes, causing the warning light to remain on.
Using a diagnostic scanner, these stored codes can be cleared to reset the system.
After clearing the codes, the ABS module should be monitored to ensure that no new faults appear.
This step confirms that the repair was successful and that the system is ready to provide reliable anti-lock braking performance under real driving conditions.
So, When You Should Go to the Professional
1. The ABS Light Remains On Even After Repairs
If the ABS warning light remains on even after inspection, sensor cleaning, fuse replacement, or wiring repair, it could be a sign of a serious internal problem.
A persistent warning light means the problem cannot be easily identified or may involve multiple parts.
Driving without proper ABS function can endanger safety, so professional diagnosis is recommended in such situations.
2. Serious Malfunctions Involving Module Communication Problems
Modern ABS systems communicate with other vehicle control modules, such as traction control, stability control and engine management systems.
Communication problems between these modules can trigger the ABS light and often complicate basic troubleshooting.
Professionals have specialized diagnostic tools to detect communication problems and ensure that all related systems are functioning properly.
3. Hydraulic Pump or Accumulator Problems
The ABS hydraulic pump and accumulator regulate brake fluid pressure during anti-lock braking.
Malfunctions in these parts can cause the system to be unable to properly control brake pressure, which can lead to wheel lockup or reduced braking performance.
Diagnosing and repairing hydraulic components requires specialized knowledge, equipment and safety precautions, so it’s important to involve a trained technician.
4. Safety Risks Requiring Expert Diagnosis
ABS malfunctions directly impact vehicle safety, specially during emergency stops or on slippery surfaces.
Attempting to repair high-risk components like the ABS module, hydraulic system, or complex electrical circuits without proper knowledge can result in accidents or further damage.
Seeking professional help ensures accurate diagnosis, proper repairs and safe operation of your vehicle.
Conclusion – How to Diagnose ABS Warning Light
So, whenever the ABS light comes on, then it is the clear indication that your vehicle’s system needs for your attention, don’t ignore it as it can compromise safety, so just act on it to ensure the safe and happy journey.
And, The ABS system plays a vital role in preventing wheel lockup, maintaining steering control and reducing the risk of accidents, specially on wet or slippery roads.
By adopting a systematic approach—such as performing a visual inspection, checking fuses and relays, testing wheel speed sensors, scanning the system for fault codes and inspecting the tone ring and ABS module—drivers can identify the most common problems before they escalate into costly repairs or unsafe driving conditions.
Using a diagnostic scanner and understanding real-time sensor data helps vehicle owners make informed decisions.
While minor problems like dirty sensors or blown fuses can often be fixed at home, more serious issues involving the ABS module, hydraulic pump, or communication malfunctions should always be addressed by a professional.
Staying informed about ABS performance, performing regular inspections and promptly addressing warning lights ensures your vehicle remains safe, reliable and fully prepared to handle emergency braking situations.
And, you can also ask unsolved queries in the comment box.
Frequently Asked Questions
Q1. Can I drive my car with the ABS warning light on?
Answer: Yes, you can usually drive with the ABS light on because your normal brakes still work. However, driving without a working ABS system is less safe, specially during emergency braking or slippery conditions. The ABS system is designed to prevent wheel lockup and maintain steering control. If the ABS light remains on, it’s recommended to have the system inspected and repaired as soon as possible to ensure your safety.
Q2. How do I check the ABS system myself?
Answer: You can start by performing a simple visual inspection. Check for cuts or corrosion in the ABS sensor wires and make sure there’s no debris on the wheel speed sensor or tone ring. Check the brake fluid level in the reservoir to ensure it’s at the correct level. You can also use an OBD-II scanner capable of reading ABS codes to check stored fault codes and monitor live sensor data. These steps can help identify many common problems before more complex repairs are required.
Q3. What are the common causes of the ABS warning light activation?
Answer: The ABS light can come on due to a variety of problems. A bad ABS sensor or faulty wiring are common causes. Dirty or faulty wheel speed sensors can also send incorrect signals to the module. Electrical problems, such as a blown fuse or a faulty relay, can prevent the ABS system from functioning. Low or bad brake fluid can affect ABS function and problems with the ABS module or pump can trigger a warning. Worn wheel bearings can also interfere with sensor readings and cause the light to come on.
Q4. How do mechanics diagnose ABS problems?
Answer: Mechanics use several tools and tests to diagnose ABS problems. They attach a diagnostic scanner to the vehicle to read stored ABS trouble codes and view live sensor data. They also perform a visual inspection of the sensors, tone rings, wiring, fuses, relays and ABS control module. In some cases, they may check the hydraulic pump, accumulator and wheel bearings. By working systematically, mechanics can determine the root cause of the ABS warning light.
Q5. Can ABS problems be fixed at home?
Answer: Some ABS problems can be fixed at home if they are simple, such as cleaning a dirty sensor, replacing a fuse, or refilling brake fluid. However, more complex problems, such as a faulty ABS module, a bad hydraulic pump, or an electrical fault in the wiring harness, should be handled by a professional. Attempting repairs without the proper tools or knowledge can be dangerous and may worsen the problem.
Q6. Why does the ABS light sometimes turn off after a while?
Answer: If the system detects that the fault is no longer present, the ABS light may turn off. For example, if dirt blocked the wheel speed sensor for a while but was cleared while driving, the light may turn off. However, intermittent problems may still indicate internal issues, such as loose wiring or a faulty sensor. It’s always best to perform a thorough inspection to ensure the ABS system is functioning properly.
References:
[1] Examination of ABS-Related Driver Behavioral Adaptation – On-Road MicroDAS Study
https://www.nhtsa.gov/sites/nhtsa.gov/files/nhtsaabs7-2finalreport.pdf
Guys, I’m a car audio enthusiast and customization expert and I love clear sound and clean installation. Plus, I have spent years helping people build their dream audio setups. And whenever I’m working on cars, I probably listen to music and thinks about the next big upgrade.
