You need to understand that most of the time ABS warning lights are actually caused by simple electrical issues and you actually have to take care of it as it helps the car to read wheel-speed data in a correct way, then it allows the ABS, traction control and stability control to be fully functional during drive.
Even, ABS Fuse protects the Anti-Lock Braking System from all kinds of electrical overloads that could damage expensive components such as: ABS pump or control module as well.
Generally, ABS Fuse just acts like a safety gate that actually stops extra electrical current from flowing through the system, so whenever it blows out or doesn’t works in fine touch then you can see ABS warning lights on the dashboard and the ABS system becomes inactive as well.
Additionally, according to the general automotive electrical standards: every kind of fuse is literally designed to fail before any major part gets damaged, which is why you should check and replace a fuse, as it should be first and easiest step when the ABS light comes on.
Plus, many drivers actually don’t realize that a blown ABS fuse can also affect the traction control and stability control as well, but these systems rely on the ABS module to read wheel-speed data.

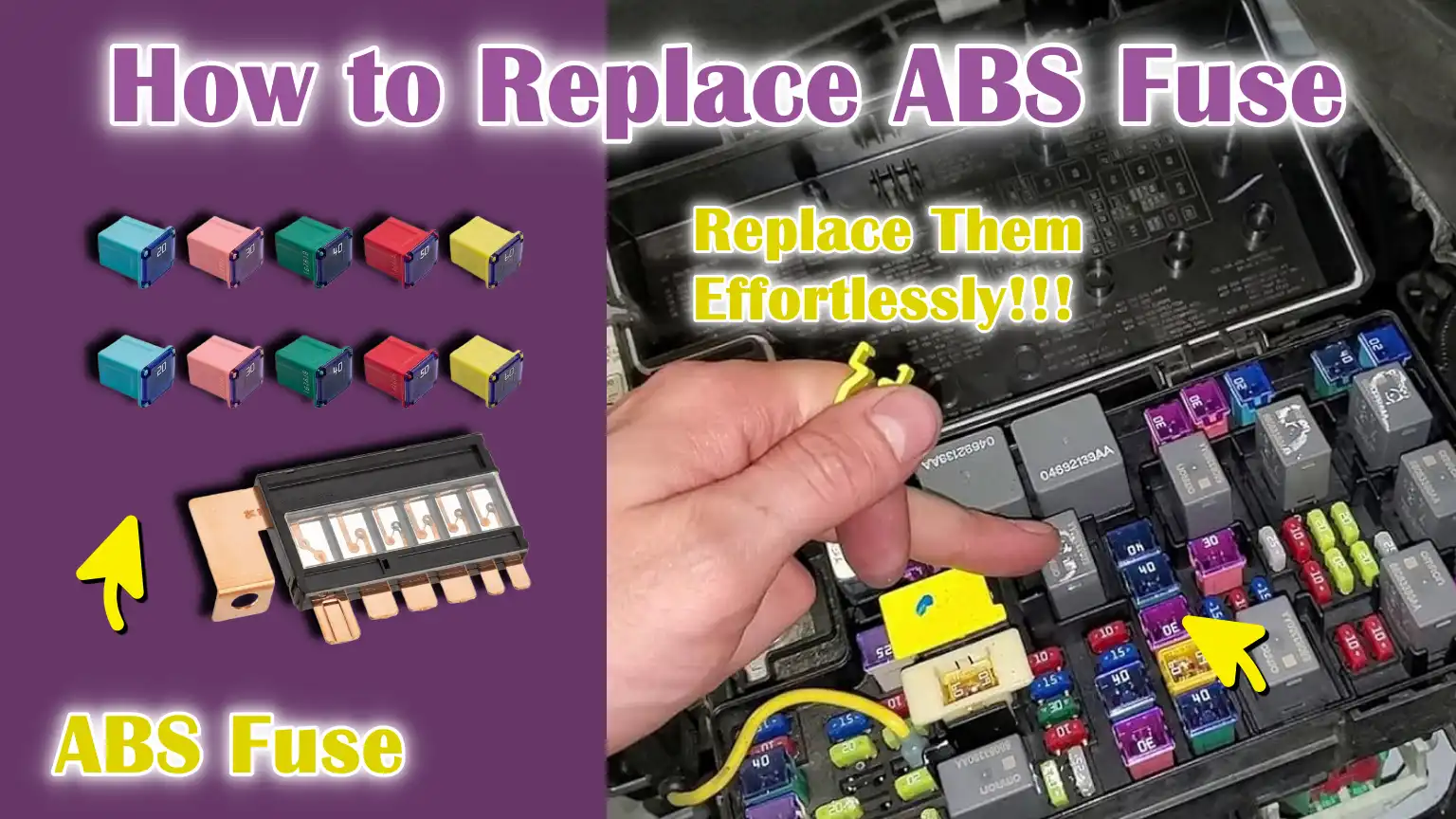

But the good thing is that, this guide specifically focuses on How to Replace ABS Fuse, so that you can easily solve problem if the issue is only the electrical overload and not a deeper hardware failure.
Tools
| Tool / Material | Simple Meaning | Why You Need It | Helpful Notes |
|---|---|---|---|
| Owner’s Manual | The book that comes with your car. | It shows the exact location of the ABS fuse and the correct fuse number. | See the “Fuse Box” or “Fuse Chart” page. |
| Fuse Puller or Needle-Nose Pliers | A small tool that helps you grab the fuse and pull it out. | This allows you to safely remove the fuse without damaging the fuse box. | Most cars already have a fuse puller tool inside the fuse box. |
| Correct Amperage Replacement Fuse | A new fuse with the same power rating as the old fuse. | This replaces the fuse and resets the ABS system. | The number marked on the fuse such as: 10A, 15A & 20A that must match exactly. |
| Safety Gloves | simple hand protection gloves. | They protect your hands from sharp edges and hot parts under the hood. | Thin rubber or cloth gloves are best for small electrical jobs. |
How to Ensure Safety
1. Park the car on a level surface
Parking the car on a level and stable surface is essential as it prevents the car from rolling or rocking while working under the hood.
A level surface provides a safe place to stand or kneel, reducing the risk of slipping or losing balance.
This simple step also helps protect sensitive parts in the engine bay from sudden movements when you apply pressure to open fuse boxes or remove parts.
A stable car means a stable workspace and this is essential for a safe fuse replacement.
2. Turn off the ignition and remove the key
Turning off the ignition and removing the key completely shuts off all active electrical circuits in the car.
Modern cars have many systems that remain operational even after the engine is turned off, so removing the key ensures that no electrical current flows through the ABS system while you are working.
This prevents accidental short circuits, protects the electronic control module and protects your hands from sudden electrical activity.
It also helps the vehicle enter a stable “rest mode,” making the fuse replacement process safer and easier.
3. Disconnect the Negative Battery Terminal
Disconnecting the negative battery terminal is one of the most reliable safety steps in vehicle electrical work because it prevents the entire electrical system from sending power to any components.
Auto technicians use this method to prevent sparks, shocks and accidental powering of modules while working on circuits.
Removing the negative terminal breaks the energy path, making the entire system safe to touch and eliminating the risk of damage to the ABS control unit, fuse socket, or other wiring.
This extra precaution protects both the vehicle’s electronics and the person working on it.
4. Let the electrical system discharge before touching the fuse
Leaving the electrical system to discharge for a few minutes after disconnecting the battery slowly releases stored electricity from modules, capacitors and sensors.
Many car systems retain some electrical energy even after the battery is removed and giving them time to release this charge can prevent accidental sparks or interference with sensitive components.
This waiting period also helps the ABS system completely shut down, ensuring there’s no residual current when you remove or install the fuse.
Taking this time to let everything settle adds an extra layer of safety and makes the entire process more safe and reliable.
How to Locate the ABS Fuses
1. Locate the Fuse Box Location in the Engine Bay and Cabin
To locate the ABS fuse, the first step is to locate the fuse box, which is usually located in two common locations: the engine bay and cabin.
The engine bay fuse box is often located near the battery, near the fender, or near the air intake and contains high-power circuits that control essential systems like the ABS, fan and ignition.
The cabin fuse box is usually located under the dashboard, behind the side panel, or near the glove compartment and contains low-power circuits for the interior and control electronics.
Understanding both locations helps you find the correct fuse quickly and reduces the time it takes to locate the ABS fuse.
2. Use the Owner’s Manual to Locate the ABS Fuses
The owner’s manual is the most reliable guide to finding the correct ABS fuse, as each vehicle’s layout is different.
The manual contains a fuse diagram that shows the correct location, fuse number and amperage rating for the ABS system.
This prevents confusion, specially in cars with multiple fuses related to the braking or stability systems.
Following the manual ensures you don’t remove the wrong fuse and accidentally shut down another important car system.
3. Identify labels like ABS, ABS MTR and ABS PUMP
Fuse boxes often have small labels indicating which circuit each fuse controls and for the ABS system, these labels may include words like ABS, ABS MTR, or ABS PUMP.
ABS stands for the main anti-lock braking circuit, ABS MTR usually refers to the motor that drives the ABS pump and ABS PUMP controls the hydraulic pump that manages brake pressure during hard stops.
Understanding these labels helps you quickly identify the correct fuse and avoid confusion with similar-looking systems, such as the traction control or stability control circuit.
4. Look for signs of a blown fuse, such as a broken strip or burn marks.
Blown fuses often show signs of damage that can help you confirm the problem.
When you remove the fuse and hold it up to the light, you may see a broken metal strip inside, which means the fuse blew due to an electrical overload.
Some fuses also have black spots or burn marks on their plastic bodies, indicating overheating or a short circuit.
These visible signs make it easier to identify whether the ABS warning light is caused by a fuse and whether it needs to be replaced.
Knowing these signs can help you diagnose an ABS problem with greater confidence and avoid unnecessary repairs.
How to Remove the Old Fuse
1. Carefully Open the Fuse Box Cover
It’s important to carefully open the fuse box cover, as many covers have locking tabs, clips, or plastic hinges that can break if pulled too hard.
These covers protect electrical components from dust, heat and moisture, so keeping them intact ensures the fuse box remains properly sealed after repairs.
When opening the cover, applying gentle pressure can prevent it from bending or breaking, helping to maintain the manufacturer’s original protection level.
Careful handling also helps prevent sudden movements that could damage nearby wires or connectors inside the fuse housing.
2. Use a Fuse Puller to Grasp and Remove the Fuse
Using a fuse puller is the safest and most effective way to remove a fuse, as it is designed to firmly grip the small plastic body without applying excessive pressure.
Most vehicles have a fuse puller inside the engine bay fuse box and this tool makes removing fuses even in tight spaces easy.
The puller prevents you from touching metal parts with your fingers, reducing the risk of slipping or accidentally damaging them.
It also gives you more control when pulling the fuse straight out of its slot, which is essential when working around sensitive electrical parts.
3. Avoid Pulling At An Angle To Avoid Damaging the Socket
It’s very important to avoid pulling at an angle because each fuse fits into a small metal socket, which must be tight and secure for the electrical system to function properly.
Pulling the fuse at an angle or at a sharp angle can bend the metal contacts or loosen the socket, which could damage the electrical connection or cause future fuse damage.
Keep your hand steady and lift the fuse straight up to ensure the socket is in good condition and the replacement fuse is securely fitted.
This method also prevents excessive stress on nearby fuses and wiring.
4. Check for Internal Damage in the Removed Fuse
Inspecting the old fuse after removing it helps you confirm whether the ABS problem was indeed caused by a blown fuse or whether there might be some other issue.
When you hold the fuse up to a light, you may see a thin metal strip inside; if the strip is broken or melted, it means the fuse has failed due to an electrical overload.
Sometimes, deep burn marks may appear on the plastic housing, which could indicate a short circuit or overheating in the system.
Checking the fuse provides useful clues about the health of the ABS circuit and helps determine whether further inspection of the wiring or sensor is necessary.
How to Install a New Fuse
1. Match the Amperage Rating Exactly to Factory Specifications
One of the most important steps when installing a new ABS fuse is to match the amperage rating exactly to the factory specifications, as using the wrong rating can cause serious electrical problems.
Each fuse is designed to handle a specific amount of electrical current and using a fuse with a higher rating can cause it to fail in an overload, potentially damaging vital ABS components like the pump motor or control module.
On the other hand, a fuse with a lower rating can blow very easily and cause the ABS warning light to repeatedly illuminate, even when nothing is wrong.
Checking the number on the fuse and confirming that it matches the owner’s manual ensures that the system is protected as directed by the manufacturer.
2. Insert the Fuse Directly into the Socket
It is important to insert the new fuse directly into the socket for a clean and reliable electrical connection.
When a fuse is installed correctly, the metal legs inside the fuse align correctly with the contact points in the fuse box, allowing electricity to flow smoothly through the ABS circuit.
If the fuse is installed at an angle, it may not be properly seated, which could lead to weak connections, intermittent power, or sudden ABS failure.
A gentle, direct push ensures that the fuse is in place and won’t damage other nearby components.
3. Ensure it’s securely installed without excessive force
Ensuring the fuse is securely installed without excessive force can prevent damage to both the fuse and the socket.
A properly sized fuse will slide into the slot with gentle pressure and stop when it reaches the correct depth.
If you feel resistance or need to apply more force, it may indicate that the fuse is not in the correct position or is not the correct size.
Force may bend the internal contacts or crack the fuse body, causing a malfunction.
A firm but gentle click or popping sound indicates that the fuse is properly installed and ready to operate.
4. Properly Replace the Fuse Box Cover
Properly reinstalling the fuse box cover is crucial because it protects the electrical system from dirt, moisture, heat and vibration, all of which can corrode or loosen connections over time.
A tight cover ensures the fuse box remains sealed and the components inside are protected from environmental damage.
Ensuring that each clip or latch is fully closed prevents the cover from moving while driving, which could unnecessarily expose the fuse.
Once the cover is properly locked, the ABS fuse is secured and the system is ready for testing.
How to Reconnect the Battery and Test the System
1. Reconnect the negative battery terminal
Reconnecting the negative battery terminal restores power to every system in the vehicle, including the ABS circuit you just repaired.
This step is important because it allows the car’s computer to resume normal operation and recheck all electrical connections.
When you tighten the terminal properly, it ensures a consistent flow of power, preventing voltage drops that could cause incorrect warning lights to appear.
Fixing the battery connection also helps the ABS module power up and restart, allowing it to detect the newly installed fuse and resume normal communication with the wheel sensors and other brake components.
2. Start the engine and check if the ABS light disappears
Starting the engine activates the vehicle’s self-diagnostic process, where the control module checks every major system, including the ABS.
If replacing the fuse fixes the problem, the ABS light should turn off after a few seconds, meaning the system is receiving sufficient power and functioning properly.
This simple check allows you to quickly confirm whether the fuse was the cause of the problem or if a more serious issue still exists.
Sometimes the ABS light can take a while to reset, specially on modern vehicles, which take a few seconds to complete their diagnostic cycle.
3. Perform a slow test drive to confirm system response
A slow test drive is an important step because it allows the ABS module to gather new wheel-speed data and confirm that the system is functioning normally under real road conditions.
A slow drive allows you to safely test the brakes without putting your vehicle at risk and to see if any warning lights reappear.
This controlled test helps you confirm that the fuse is providing stable power and that no other electrical problems are affecting ABS function.
During this short drive, the car’s computer monitors data to ensure everything is working as expected.
4. Monitor Brake Performance During Normal and Sudden Stops
Monitoring brake performance during mild and sudden stops helps you understand whether the ABS system is providing adequate support.
During normal braking, the pedal should feel smooth and consistent, indicating a stable hydraulic system.
During sudden stops, you should feel the ABS activate when needed, which usually feels like a sharp, controlled pulse under the pedal.
This confirms that the ABS module is receiving power and that the fuse is functioning properly.
Paying attention to these factors ensures that your braking system is safe, responsive and ready for regular driving conditions.
Read More:
How to Fix Any Issue if the Light Remains on
1. Recheck Fuse Amperage and Installation
If the ABS light remains on, the first step is to recheck the fuse amperage and installation, as even a small mistake like selecting the wrong fuse rating or installing it incorrectly can prevent the ABS circuit from receiving proper power.
The amperage number must match the exact value specified in the owner’s manual, as even a small mistake can confuse the system or cause repeated fuse failures.
Sometimes a fuse may appear to be in place but is not fully seated, creating a weak connection that disrupts the voltage supply to the ABS module.
Ensuring that the fuse is the correct type and is firmly seated in its socket ensures consistent, uninterrupted power to the system.
2. Check for Loose Wiring or Corroded Connectors
Checking for loose wiring or corroded connectors is important, as the ABS system relies on clean, strong electrical connections to function properly.
Over time, moisture, dirt and heat can cause connectors near the fuse box or ABS module to oxidize or become loose, preventing proper power supply.
Even a slightly loose connector can disrupt communication between the module, wheel sensor and fuse circuit, causing the ABS warning light to illuminate.
Checking the wiring harness and connectors for corrosion, green rust, poor insulation, or signs of movement can help determine if the warning light is caused by a minor electrical problem.
3. Scan ABS Trouble Codes Using an OBD-II Scanner
Scanning ABS trouble codes using an OBD-II scanner provides quick and accurate information about which part of the system is malfunctioning.
When the ABS light comes on, the vehicle’s computer stores a specific fault code that directly points to that part, whether it’s a wheel sensor, pump motor relay, module communication problem, or voltage issue.
Scanners save you time and effort by pinpointing the exact location and nature of the fault.
Many inexpensive scanners can read ABS codes, making it easier for drivers to understand what the system is detecting behind the scenes.
4. Check for a faulty ABS sensor, pump, or module
When fuses and wiring are in good condition, but the warning light still appears, it’s important to check for a faulty ABS sensor, pump, or module.
ABS wheel sensors are among the most common fault points because they are located near the wheels and are exposed to dirt, road debris and constant vibration.
A weak or worn pump motor can also cause errors by failing to generate the necessary hydraulic pressure during a sudden stop.
In rare cases, the ABS control module itself may be internally damaged, specially in older vehicles where heat and age can affect its electronic circuits.
Understanding these potential causes helps you identify deeper mechanical or electrical problems that may require professional diagnosis or repair.
How to Maintain It
1. Keep the Fuse Box Clean and Away from Moisture
Keeping the fuse box clean and away from moisture is one of the most effective ways to protect the ABS fuse and the entire electrical system.
Moisture can corrode the metal contacts, weakening the electrical connections and causing the fuse to blow or the ABS warning to sound intermittently.
If the cover is not properly sealed, dirt and debris can also enter the fuse box, increasing the risk of contamination and overheating around the fuse terminals.
Regularly checking that the cover is tightly closed and the area around the fuse box is clean helps maintain a safe, dry environment that supports long-lasting electrical performance.
2. Periodically Check Electrical Connections
Periodic electrical connections help ensure consistent and reliable power to the ABS system.
Over time, vibration from driving, heat cycles in the engine bay and natural aging of wires can loosen connectors or create small gaps that impact voltage delivery.
Even a small amount of corrosion or a loose plug can disrupt communication between the ABS module, sensors and fuses.
Checking these connections during routine maintenance helps detect early signs of wear, allowing you to fix problems before they escalate into major electrical issues or cause sudden ABS malfunctions.
3. Avoid aftermarket accessories that overload the circuit
To protect the ABS system from electrical stress, it’s important to avoid aftermarket accessories that overload the circuit.
Many add-on devices, such as high-power lights, audio systems, or additional electronics, draw extra current, which can strain shared circuits.
If these accessories are wired incorrectly or draw too much power from the fuse box, they can often blow fuses or cause voltage drops that affect sensitive ABS components.
Using factory-approved electrical loads and professional installation for any upgrades keeps ABS circuits stable and safe.
It is really important to choose the OEM or truly high-quality replacement fuses as they matters a lot, because laboratory tests also shows that the fuses from the different manufacturers literally behaves differently under the heat and long use, which is why you should always replace an ABS fuse with the exact amp rating and from a trusted brand as well.[¹]
4. Check ABS Components During Routine Service
Checking ABS components during routine service helps maintain the health of the entire system and prevent unexpected failures.
ABS sensors, wires and the module itself can deteriorate over time due to road debris, exposure to moisture, or simply aging.
Checking these parts during brake service or scheduled vehicle maintenance can help the mechanic or owner quickly identify problems such as cracked sensor wires, loose mounting points, or corrosion near the tone ring.
Keeping these parts in good condition reduces the chance of the ABS light coming on unexpectedly and helps the braking system function safely and smoothly throughout the vehicle’s life.
Conclusion – How to Replace ABS Fuse
Without a second doubt, the vehicle actually depends on the clean, steady electrical power to keep you safe and that’s why you need to replace the ABS fuse to keep your braking system fast, stable and reliable.
And, by understanding how an ABS fuse works, why it blows and how to replace it correctly, you protect the braking system from electrical overload and prevent unnecessary damage to expensive parts like the ABS pump and control module.
This process also helps you build confidence in basic car maintenance, as most ABS fuse problems are minor electrical issues that can be quickly fixed with careful steps.
When you follow proper safety precautions, choose the correct fuse rating and then test the system, you ensure that ABS, traction control and stability control all function as designed.
Taking a few minutes to check the fuse box, inspect the wiring and maintain a dry, clean electrical environment can greatly reduce the likelihood of future ABS warnings and keep your car’s braking performance reliable.
Ultimately, learning how to replace an ABS fuse not only saves time and money, but also gives you a better understanding of how your vehicle protects you on the road every day.
Now, it is the time to ask questions regarding this guide, in the comment section below.
Frequently Asked Questions
Q1. What is an ABS fuse and what does it do in a car?
Answer: The ABS fuse is a small electrical safety device that protects the anti-lock braking system from electrical overload. The ABS system requires constant electrical power to read the wheel-speed sensors and prevent your wheels from locking when braking. If excessive current flows due to a short circuit or faulty wiring, the ABS fuse melts and cuts off power before any major damage occurs. Without a working ABS fuse, the ABS module cannot receive power, causing the ABS light to illuminate and the system to stop working.
Q2. How do I know if my ABS fuse has blown?
Answer: You can tell if your ABS fuse has blown when the ABS warning light on the dashboard comes on and remains on even after restarting the car. Another sign is when the ABS system stops working under hard braking and the tires skid instead of pulsing. In many cases, a blown fuse also means you may lose traction control or stability control, as these features share the same electrical power. If the fuse appears melted, burned, or broken inside its plastic case, this is also a clear sign that it has blown and needs to be replaced.
Q3. Where is the ABS fuse located in most cars?
Answer: The ABS fuse is usually located in one of the vehicle’s fuse boxes. Most cars have two fuse boxes: one inside the cabin and one in the engine bay. The ABS fuse is often located in the engine bay fuse box because the ABS pump and control module are located nearby. However, the exact location depends on your car’s make and model. The best way to confirm the location is to read your vehicle’s owner’s manual, which contains a fuse diagram that shows the correct location and fuse number for the ABS system.
Q4. Is it safe to drive with a blown ABS fuse?
Answer: It’s possible to drive with a blown ABS fuse, but it’s unsafe, specially on wet, icy, or slippery roads. When a fuse blows, the ABS stops working completely, which can lead to sudden braking and wheel locking. This increases stopping distance and reduces steering control in an emergency. Normal brakes work, but the lack of ABS protection makes the vehicle less stable. It’s always recommended to replace the ABS fuse as soon as possible and find out why it blew in the first place.
Q5. What tools do I need to replace an ABS fuse?
Answer: To replace an ABS fuse, you’ll need just a few simple tools: the owner’s manual to find the fuse diagram, a fuse puller or needle-nose pliers to remove the faulty fuse and a new replacement fuse with the same amperage rating. You can also wear safety gloves if you want to protect your hands while working under the hood. These tools are inexpensive and are often already included in the fuse box area of most cars.
Q6. What is the correct amperage for an ABS fuse?
Answer: The correct amperage for an ABS fuse depends on the specific design of your car, but it is usually between 10 and 40 amps. The correct value is always printed on the fuse itself or shown in the vehicle’s fuse diagram in the owner’s manual. It is important to always replace the fuse with the correct amperage, as using a fuse with a higher amperage can damage the ABS module and using a fuse with a lower amperage can cause it to blow again.
References:
[1] STUDY OF RELIABILITY AND EFFICIENCY OF AUTOMOTIVE FUSES SAMPLES
https://www.utgjiu.ro/rev_ing/pdf/2021-4/18_Georgi%20Tsonev%20VELEV_STUDY%20OF%20RELIABILITY%20AND%20EFFICIENCY%20OF%20AUTOMOTIVE%20FUSES%20SAMPLES.pdf
Guys, I’m a car audio enthusiast and customization expert and I love clear sound and clean installation. Plus, I have spent years helping people build their dream audio setups. And whenever I’m working on cars, I probably listen to music and thinks about the next big upgrade.
