The brake master cylinder actually creates the pressure which is needed to stop the car in a safe way, so it is worn out then the master cylinder can cause sudden pressure loss which makes the brakes soft or sinking brake pedals.
Basically, it is the main component that creates the hydraulic pressure which is needed to stop the vehicle, so whenever you press the brake pedal, the master cylinder actually pushes brake fluid through the brake lines that activate the calipers or wheel cylinders; and this pressure is what actually allows the car to slow down safely.
If your master cylinder worn out or failing then it reduces this pressure, which may lead to a soft brake pedal, longer stopping distances or even you can have complete brake failure in severe cases.
As well as, most of the vehicles actually uses a dual-circuit master cylinder design, which basically adds a lyer of safety as it ensures that if one circuit fails, then the other can still provide partial braking.
Plus, according to the automotive safety data, the hydraulic brake failures are actually caused by the faulty master cylinders are one of the leading reasons for the brake system repair.
And because the braking is the most critical safety function in a vehicle, which is why you need to know How to Replace Brake Master Cylinder on time so that you can prevent any possible dangerous driving situations and maintain proper brake performance.

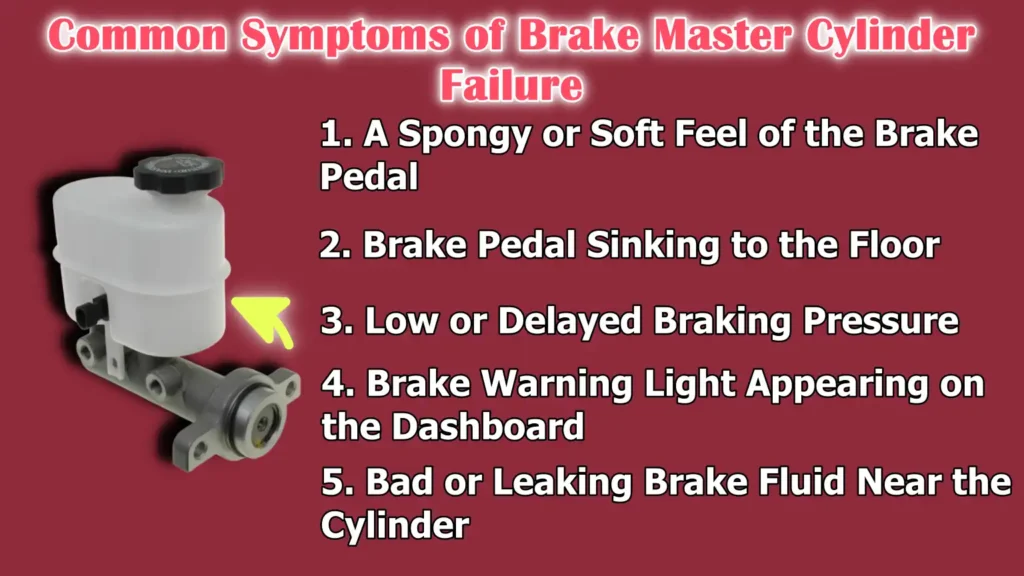

Common Symptoms of Brake Master Cylinder Failure
1. A Spongy or Soft Feel of the Brake Pedal
One of the early symptoms of brake master cylinder failure is a spongy or soft feel of the brake pedal.
As the master cylinder wears out, it can no longer generate the necessary hydraulic pressure to properly push brake fluid through the lines.
This can cause the brake pedal to feel soft or sticky when pressed, requiring more force than usual to slow the vehicle.
Drivers often experience a delay between pedal action and braking, which can be dangerous if not immediately addressed.
2. Brake Pedal Sinking to the Floor
Another serious symptom is the brake pedal sinking completely to the floor when braking.
This usually occurs when the master cylinder’s internal seal is leaking or completely worn out.
Because of this, the brake fluid cannot maintain pressure in the system, causing the pedal to retract more than normal without providing adequate braking force.
This condition significantly increases stopping distance and is considered a major safety hazard.
3. Low or Delayed Braking Pressure
A malfunctioning master cylinder can also reduce the overall braking pressure in the system.
Drivers may notice that the car takes longer to stop, even with a firm press on the brake pedal.
This is because the hydraulic force pushing the brake pads onto the rotor is less than expected.
Low braking pressure can be specially dangerous during emergency stops or on slippery ground, requiring timely repair.
4. Brake Warning Light Appearing on the Dashboard
Many modern vehicles are equipped with sensors that monitor the performance of the brake system.
When the master cylinder begins to malfunction, a brake warning light or ABS light may appear on the dashboard.
This is the car’s way of alerting the driver that hydraulic pressure is low or there may be a leak.
If this warning is ignored, the brake system may fail completely if the problem is not quickly repaired.
5. Bad or Leaking Brake Fluid Near the Cylinder
A leaking or defective master cylinder can leak brake fluid from the reservoir or around the cylinder.
Bad brake fluid, which often appears dark or dirty, can also indicate internal damage.
Leaks not only reduce braking performance but can also damage other brake components over time.
Regularly checking the brake fluid level and checking for leaks near the master cylinder is an easy way to detect problems early and avoid costly repairs.
Tools
| Tool / Material | Purpose / Use | Notes |
|---|---|---|
| Basic hand tools (wrenches, sockets, screwdrivers) | Used to remove and install bolts and screws securing the master cylinder and brake lines. | If unsure about bolt size, look at both metric and standard sizes. |
| Brake fluid (vehicle-recommended type) | It is necessary to refill and remove air from the brake system after replacing the master cylinder. | Always use the type specified in the owner’s manual, for example: DOT3, DOT4 or DOT5.1. |
| Replacement brake master cylinder | Replacing an old, worn, or leaking master cylinder. | Make sure it matches your vehicle’s model and make exactly so it fits correctly. |
| Line wrenches | Used to loosen and tighten brake line fittings without rounding the nuts. | Provides better grip than standard wrenches and prevents damage to brake lines. |
| Safety equipment (gloves, eye protection) | Protects your hands from brake fluid and prevents injuries while working. | Brake fluid can cause skin irritation and damage painted surfaces, so always wear gloves and goggles. |
Basic Safety Precautions Before Replacing Brake Master Cylinder
1. Ensure the vehicle is on a flat and stable surface
Before beginning any work on the brake master cylinder, it is essential to park the vehicle on a flat and stable surface.
Working on uneven or sloping ground can increase the risk of the car rolling or overturning, which could result in serious injury.
A flat surface helps maintain stability while removing and replacing parts, making the process safer and more precise.
2. Use wheel chocks to prevent movement
Even when parked on a flat surface, if the parking brake fails or the wheels slip, the vehicle can accidentally move.
Wheel chocks must be firmly attached to the tires to prevent any movement.
This simple precaution ensures that the car remains stable during brake work, keeping both the mechanic and the vehicle safe.
3. Wearing Safety Gloves and Goggles
Brake fluid is corrosive and can cause skin irritation or eye damage.
Wearing gloves protects your hands from direct contact, while safety glasses or goggles protect your eyes from splashes.
This safety measure is crucial, as even a small amount of brake fluid on the skin or eyes can cause irritation or irritation and contact with painted surfaces can damage the vehicle’s finish.
4. Preventing Brake Fluid from Contacting Paint and Skin
Brake fluid is highly corrosive and can easily damage a car’s paint if spilled.
It’s important to handle the fluid carefully; use a clean container or funnel when refilling or bleeding the system.
Wiping up any spills immediately and avoiding direct contact with skin helps maintain both personal safety and the vehicle’s appearance.
5. Depressurize the brake system before removal
Before removing the master cylinder, it’s important to release any pressure in the brake system.
This prevents accidental splashing of brake fluid and reduces the risk of injury.
Depressurizing also removes air from the system, which can make bleeding the brakes after installation more difficult.
Following this step ensures a smooth and safe replacement process.
How to Prepare the Vehicle
1. Removing the Vehicle Battery
Before starting work on the brake master cylinder, it’s important to remove the battery.
Removing the battery prevents any electrical short circuits, specially if the master cylinder is connected to sensors or electronic components.
This also ensures that there are no disruptions to warning lights or other electrical systems during the replacement process, keeping both the mechanic and the vehicle safe.
2. Opening the Hood and Locating the Master Cylinder
After removing the battery, open the hood and locate the brake master cylinder.
The master cylinder is usually located on the driver’s side firewall, directly connected to the brake booster and brake fluid reservoir.
Knowing the exact location in advance helps plan the job well and avoids unnecessary contact with other engine parts, reducing the risk of damage.
3. Cleaning the Surrounding Area to Remove Dirt
Before removing the master cylinder, thoroughly clean the surrounding area.
Brake systems are sensitive to dirt and debris, which can get into the brake lines or cylinders during replacement and affect braking performance.
Wiping the area around the cylinder and tank with a clean cloth ensures that no dust, grease, or other debris can block the hydraulic system.
4. Checking any connected sensors or connectors
Modern vehicles often have sensors or electrical connectors connected to the master cylinder that monitor the brake fluid level or the ABS system.
It’s important to carefully check these connections before removing them to avoid damage.
Knowing where each connector is located allows you to disconnect them safely and ensure that the new master cylinder can be installed without any electrical problems.

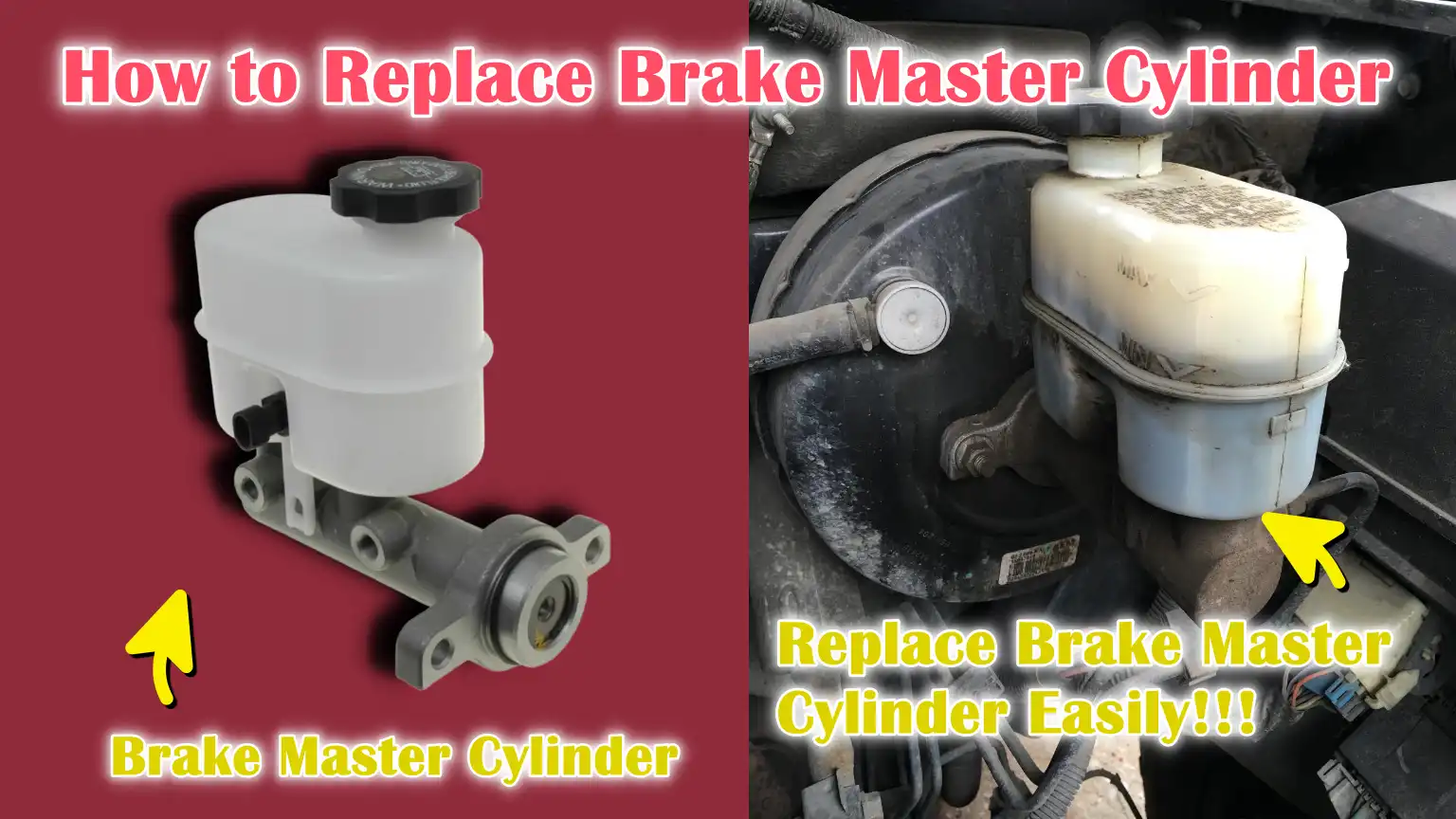

How to Remove the Old Brake Master Cylinder
1. Draining the Brake Fluid from the Reservoir
Before removing the old master cylinder, it’s important to drain the brake fluid from the reservoir.
Brake fluid is corrosive and can damage painted surfaces or other parts if spilled.
Using a clean container, you can safely drain the fluid and either dispose of it according to local regulations or save it if it’s still clean and uncontaminated.
Draining the fluid also reduces the chance of leaks and dirt during the removal process.
2. Disconnecting the Brake Lines Using a Line Wrench
After draining the fluid, carefully disconnect the brake lines connected to the master cylinder.
Using a line wrench is recommended as they provide a secure grip on the fittings and prevent the nuts from turning.
Properly loosening the brake lines without force helps keep them strong for reinstallation or future repairs and also prevents leaks or damage to the hydraulic system.
3. Removing any electrical connectors
Modern vehicles often have sensors connected to the master cylinder to monitor the brake fluid level or the ABS system.
These connectors should be gently unplugged before removing the cylinder.
Taking care not to damage the connectors when installing a new master cylinder ensures proper electrical system function.
Labeling or noting their locations can help with reconnection.
4. Unplugging the master cylinder from the brake booster
Once the brake lines and connectors are disconnected, the master cylinder can be removed from the brake booster.
These bolts hold the cylinder firmly in place and careful removal will prevent damage to surrounding parts.
Before attempting to remove the cylinder, ensure all bolts are completely loose; this makes the process easier and safer.
5. Carefully Removing the Old Master Cylinder
After removing all connections and bolts, remove the old master cylinder slowly and carefully.
This will prevent any remaining brake fluid from spilling out and coming into contact with other engine parts.
Inspecting the removed cylinder can also provide important information about wear or leaks, which can help understand why a replacement was necessary and ensure that the new master cylinder is functioning properly.
How to Install a New Brake Master Cylinder
1. Bench Bleeding the New Master Cylinder Before Installation
Before installing a new master cylinder in a vehicle, it is necessary to bench bleed it.
Bench bleeding removes any air trapped inside the cylinder, ensuring proper hydraulic pressure after installation.
This process typically involves using a small amount of brake fluid and manually pressing the piston while watching for bubbles in the fluid.
Air-free brake fluid is essential because even a small amount of air in the system can reduce braking performance and cause the pedal to feel spongy.
2. Placing the New Cylinder on the Brake Booster
After bench bleeding, the new master cylinder can be placed on the brake booster.
It must be properly aligned with the booster and mounting points for a secure fit.
Correct positioning ensures that the master cylinder operates smoothly when the brake pedal is pressed and prevents misalignment, which could damage the cylinder or brake system components.
3. Reconnecting the Brake Lines Securely
Once the master cylinder is in place, the brake lines must be carefully and securely reconnected.
Using a line wrench helps prevent the fittings from being rounded or damaged.
Tight connections are essential for preventing leaks, maintaining proper hydraulic pressure and keeping the braking system functioning properly.
Each line should be checked for correct orientation and secure attachment.
4. Reconnecting Any Sensors or Connectors
Modern master cylinders often contain sensors that monitor the brake fluid level or connect to the ABS system.
After reconnecting the brake lines, these sensors and electrical connectors must be carefully reconnected.
Ensuring that each connector is properly installed and secure allows the vehicle’s monitoring system to function properly and prevents warning lights or errors on the dashboard.
5. Ensuring All Fittings and Bolts Are Properly Tightened
Finally, all bolts, nuts and fittings should be double-checked to ensure they are tightened to the manufacturer’s torque specifications.
Loose fittings can cause fluid leaks or loss of brake pressure, potentially jeopardizing safety.
Ensuring everything is secure ensures the new master cylinder is installed correctly and the braking system is ready for safe operation.
How to Refill and Bleeding the Brake System
1. Refilling the Reservoir with Manufacturer-Approved Brake Fluid
After installing the new master cylinder, the brake fluid reservoir should be refilled with the brake fluid recommended by the vehicle manufacturer.
Using the correct fluid is crucial because different types of fluid, such as DOT3, DOT4, or DOT5.1, have different chemical properties and boiling points.
Carefully filling the reservoir prevents leaks and ensures the hydraulic system can maintain the necessary pressure for proper braking.
2. Bleeding the Brake Line from the Farthest Wheel
Once the reservoir is full, bleed the brake line to remove any trapped air.
The standard method is to start bleeding from the wheel farthest from the master cylinder, usually the passenger-side rear wheel and then proceed to the next furthest wheel in sequence.
This systematic approach ensures that all air is removed and brake fluid flows evenly throughout the system.
3. Removing Air Bubbles to Restore Hydraulic Pressure
Air bubbles in the brake lines reduce hydraulic pressure, which can cause the brake pedal to feel spongy or soft.
Bleeding the brakes removes these air bubbles, allowing the hydraulic system to function properly.
Proper bleeding ensures that pressure is properly transmitted to the calipers or wheel cylinders when the brake pedal is pressed, providing full braking power.
4. Checking Brake Pedal Firmness After Bleeding
After bleeding all the brakes, it’s important to check the firmness of the brake pedal by pressing it.
A properly bled system should have a firm, consistent feel with minimal pedal travel.
If the pedal still feels soft or spongy, it could indicate some air remains in the lines, requiring further bleeding.
Checking the pedal’s tightness is an important step to ensure the system is fully functioning.
5. Check for Leaks Around Connections
Finally, check all brake line connections, fittings and the master cylinder for any signs of leaks.
Even small leaks can cause a loss of hydraulic pressure, which can reduce braking performance and pose a safety hazard.
Ensuring every connection is tight and leak-free ensures that the new master cylinder functions safely and properly.
Read More:
How to Finally Check It and Test It
1. Ensure the Brake Pedal is Working Properly
After completing the installation and bleeding of the new master cylinder, the first step is to test the brake pedal.
Press the pedal slowly and firmly to ensure it is operating consistently and does not feel spongy or soft.
A properly functioning brake pedal should offer consistent resistance and apply the brakes immediately, ensuring the hydraulic system is properly pressurized and ready for safe operation.
2. Checking the Brake Fluid Level and Adding If Necessary
Next, check the brake fluid level in the reservoir.
During bleeding and testing, some fluid may have been used or removed.
The fluid should be at the recommended level indicated on the reservoir.
Adding the correct type of brake fluid approved by the manufacturer ensures the system maintains the correct pressure and prevents air from re-entering the lines, which can affect braking performance.
3. Check for Leaks After a Brief Test Drive
After confirming pedal response and fluid level, take the vehicle on a short, controlled test drive.
During this drive, observe how the brakes respond and listen for any unusual noises.
Next, check the master cylinder, brake lines and connections for leaks.
Even a small leak can reduce hydraulic pressure and increase stopping distance, so finding and repairing a leak quickly is crucial for safety.
4. Monitor Brake Performance During the Next Few Drives
Finally, continue to monitor the brake system during the next few drives.
Pay attention to pedal force, stopping distance and any warning lights on the dashboard.
A proper inspection ensures that the new master cylinder is functioning properly and that any hidden problems, such as minor leaks or trapped air, haven’t damaged the braking system.
Continuous monitoring helps maintain safe driving conditions and extend the life of the brake system.
How to Maintain After Replacing Brake Master Cylinder
Plus, there’s a research by NHTSA that also shows that the design and condition of a vehicle’s hydraulic braking system directly affects the stopping performance and crash risk as well, which is why you should always recommend to use OEM components and address the master cylinder’s faults quickly to help it to preserve the safety gains which modern brake systems are designed to deliver.[¹]
1. Regularly Check Brake Fluid Level and Condition
After replacing the brake master cylinder, it’s important to regularly check the brake fluid level in the reservoir.
A low fluid level may indicate a leak or wear in the system, while dirty or dark fluid can reduce braking efficiency.
Maintaining the correct fluid level and ensuring it’s clean helps the hydraulic system function properly, preventing brake failure and improving overall safety.
2. Periodically Check Brake Lines and Connections
Brake lines and connections should be periodically checked for signs of wear, corrosion, or leaks.
Even minor damage or loose fittings in the brake line can cause a loss of hydraulic pressure and cause the brakes to gradually stop working.
Regular inspections ensure that all parts are safe and functioning properly, helping to prevent sudden brake failure.
3. Avoid mixing different types of brake fluid
Different brake fluids, such as DOT3, DOT4, or DOT5.1, have different chemical compositions and mixing them can reduce braking performance or damage seals and parts.
Always use the type recommended by the manufacturer and avoid mixing fluids.
This simple precaution helps maintain the strength and reliability of the braking system over time.
4. Get your braking system inspected periodically
Even with careful maintenance, it’s always advisable to have a professional braking system inspection regularly.
These inspections can reveal hidden problems like minor leaks, worn seals, or early signs of master cylinder failure.
Regular professional inspections complement your own maintenance and ensure the long-term safety and performance of your vehicle’s brakes.
Conclusion – How to Replace Brake Master Cylinder
When you replace that worn out brake master cylinder then it can easily prevent some serious accidents, as it protects your vehicle and literally makes your vehicle’s stopping power reliable.
Because a properly functioning master cylinder generates the hydraulic pressure needed for effective braking, a worn or leaking cylinder can reduce stopping power, diminish pedal feel, or even cause brake failure altogether.
By carefully following the correct procedures—disconnecting the battery, removing the old cylinder, installing a new cylinder and bleeding the brake system—you can restore your braking system to its full potential.
Regular maintenance, which includes checking the brake fluid level, inspecting the lines and avoiding fluid contamination, extends the life of your brakes and provides peace of mind on the road.
Understanding the function, symptoms and maintenance of the brake master cylinder helps drivers take action in advance, prevent accidents and ensure safe driving for years to come.
Now, it is time for your comments, so if you have any kind of questions or queries related to this guide, just drop it on the comment box below.
Frequently Asked Questions
Q1. What is a brake master cylinder and why is it important?
Answer: The brake master cylinder is a vital part of a car’s braking system. It converts the force you apply to the brake pedal into hydraulic pressure, which delivers brake fluid to the wheels through the brake lines. This pressure presses the brake pads or shoes onto the rotor or drum, slowing or stopping the car. If the master cylinder is worn or leaking, it can cause the brakes to become soft, stall for extended periods, or even cause the brakes to fail completely, which is crucial for vehicle safety.
Q2. How do I know if my brake master cylinder needs to be replaced?
Answer: There are several common signs that indicate the master cylinder may need replacing. You may notice a spongy or soft brake pedal that feels sticky when pressed. The brake pedal may sink all the way to the floor, or the car may take longer than usual to stop. Brake warning lights may also appear on the dashboard and you may notice leaks or dirty brake fluid around the cylinder. These symptoms indicate that the hydraulic system is malfunctioning and may need to be replaced.
Q3. Can I replace the brake master cylinder myself?
Answer: Yes, replacing the brake master cylinder is a task that any careful and prepared person can do at home, but it requires the right tools, safety precautions and attention to detail. You will need basic hand tools, a line wrench for the brake lines, a new master cylinder and the correct brake fluid. Safety is crucial, as brake fluid deteriorates quickly and working with hydraulic systems can be dangerous if steps are skipped. Following the right guide and understanding the steps can make this process easy for anyone with basic mechanical knowledge.
Q4. What tools and materials will I need to replace the brake master cylinder?
Answer: To replace the brake master cylinder, you’ll need basic hand tools like a wrench, socket and screwdriver to remove bolts and fittings. A line wrench is needed to safely disconnect the brake lines without damaging them. You’ll also need the correct type of brake fluid recommended by your vehicle manufacturer and a replacement master cylinder that matches your car model. Safety equipment like gloves and eye protection are essential to avoid injury or exposure to contaminated brake fluid.
Q5. What is the process for bleeding the brake system after replacing the master cylinder?
Answer: Bleeding the brake system removes air trapped in the brake lines, which is crucial for restoring proper hydraulic pressure. This process typically begins with the wheel farthest from the master cylinder and progresses to the next furthest wheel. Brake fluid is pushed through the lines while checking for bubbles. Any air bubbles reduce brake effectiveness and cause a soft pedal feel. After removing air from the lines, the brake pedal should feel firm and the hydraulic system will function properly.
Q6. How often should I check or maintain my brake master cylinder after replacement?
Answer: After replacing the master cylinder, regular maintenance is essential to ensure safety. Check the brake fluid level frequently and ensure the fluid is clean. Inspect brake lines and connections for leaks or damage. Avoid mixing different types of brake fluid, as this can damage seals or reduce braking performance. It is also recommended to have a professional inspection of the entire braking system periodically to detect any hidden problems early and keep the brakes functioning properly.
References:
[1] Test Track Examination of Drivers’ Collision Avoidance Behavior Using Conventional and Antilock Brakes
https://www.nhtsa.gov/sites/nhtsa.gov/files/nhtsalvabs5.2-5.3final.pdf
Guys, I’m a car audio enthusiast and customization expert and I love clear sound and clean installation. Plus, I have spent years helping people build their dream audio setups. And whenever I’m working on cars, I probably listen to music and thinks about the next big upgrade.
